Configuration

To configure the OBP40, the device must be powered on. Switch on the power supply; the OBP40’s firmware will then start. After the initialization phase is complete, the Open Boat Projects logo will appear first, followed by a QR code displaying the login credentials for the OBP40’s access point. Both images will be visible for a few seconds. You can scan the QR code with your smartphone camera and use these credentials to log in to the OBP40’s Wi-Fi network.

Image: Start screen with OBP logo

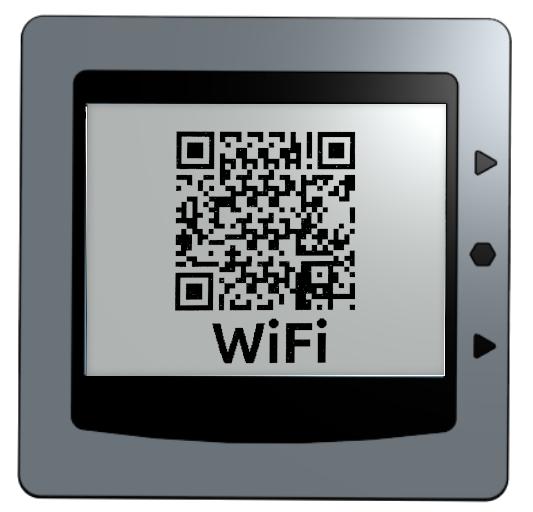

Image: QR code for WiFi access

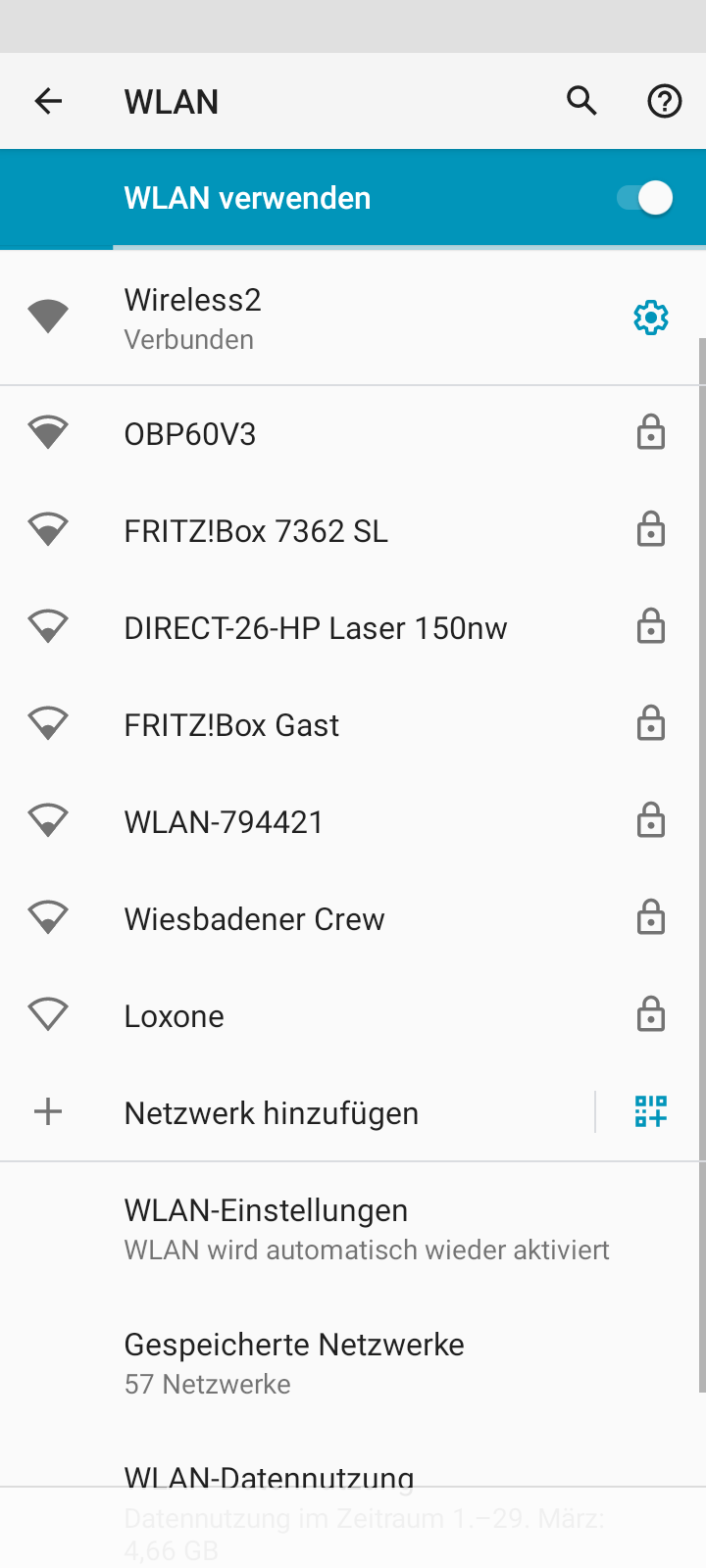

On Android 10 and later, open your Wi-Fi settings and display all available Wi-Fi networks. At the bottom of the list, under “Add a network,” you’ll find a small blue QR code icon on the right. Clicking this icon opens a window for scanning the QR code. After a successful scan, your device will automatically connect to the Wi-Fi network. You don’t need to enter the SSID or password. For older Android versions, there are scanner apps that offer similar functionality.

Image: Wi-Fi settings under Android 11

Note

If connecting to the OBP40’s Wi-Fi network via QR code doesn’t work, you can also configure it manually. Use the following access data:

• SSID: OBP40V1

• Password: esp32nmea2k

Once your device is connected to the Wi-Fi network, open a web browser and enter the address OBP40V1.local or the IP address 192.168.15.1. This will take you to the OPB60 user interface, where you can check the device’s current status. The user interface contains tabs that allow you to select different configuration options.

• Status - Status display with overview of the bus systems

• Config - General configuration page

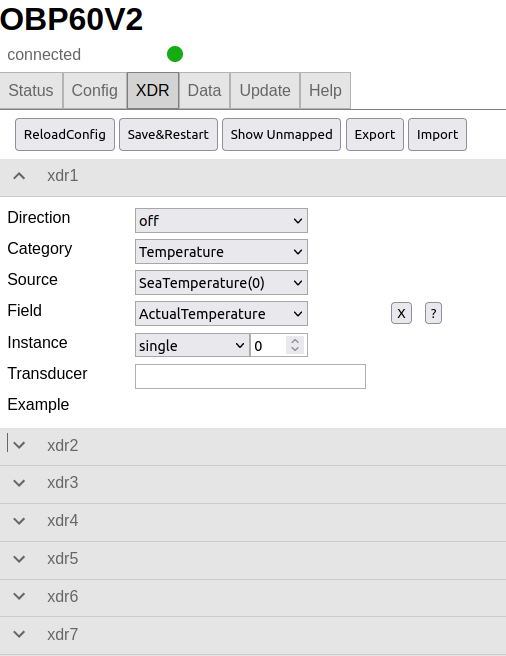

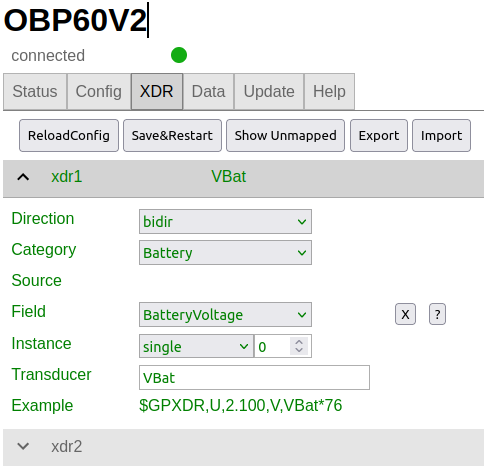

• XDR - Configuration page for NMEA0183-XDR-Sentences

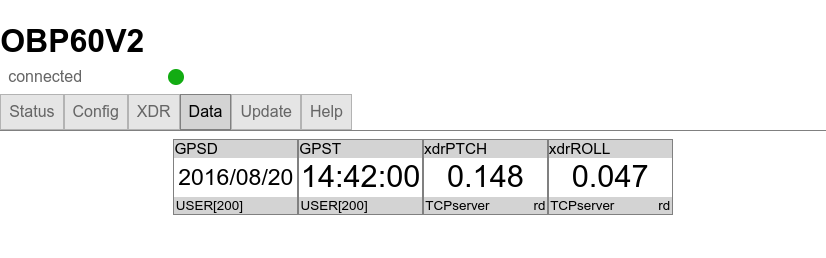

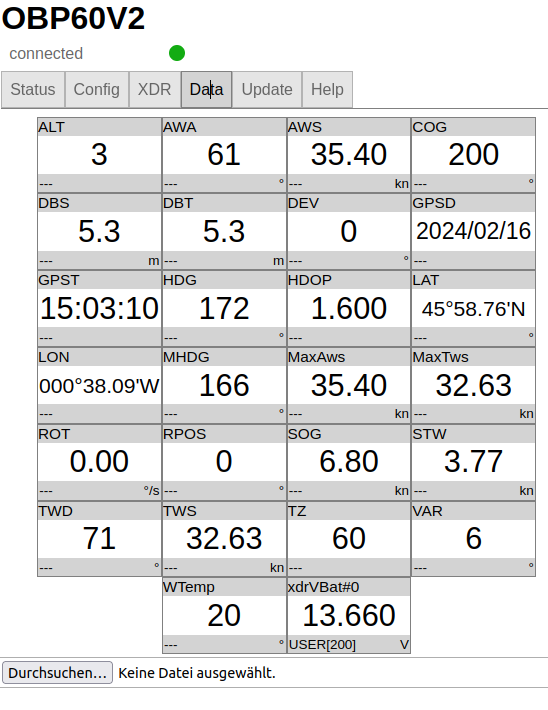

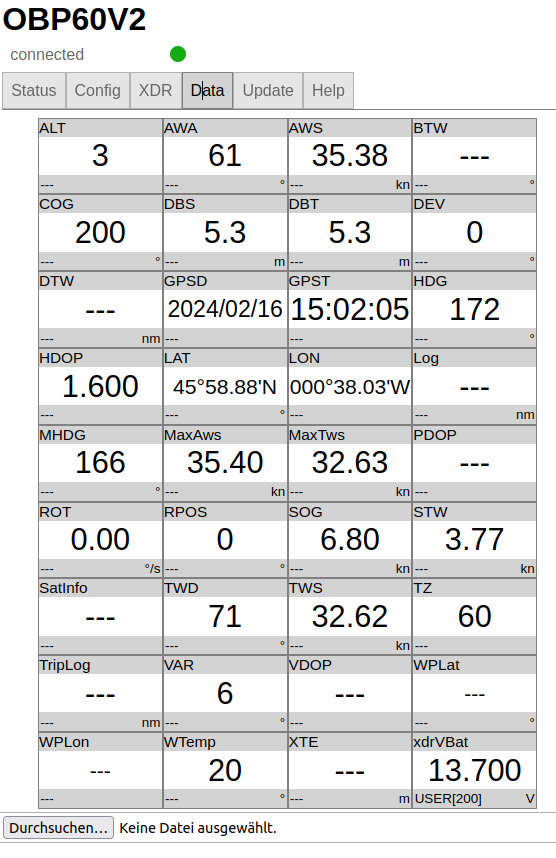

• Data - Data Display Dashboard

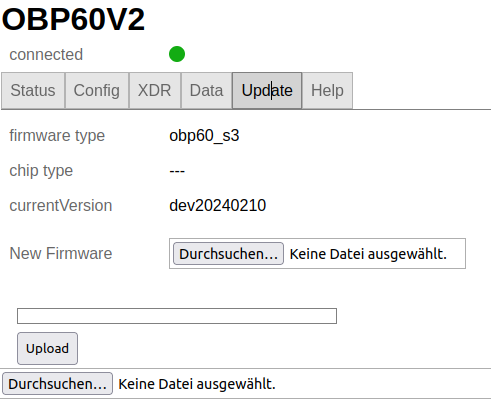

• Update - Firmware update page

• Help - Accessing the Github project page

Note

Note that no password is required when saving the configuration the first time you access the configuration interface. The default password is esp32admin. You can also enter your own password, using only characters from the ASCII character set. The password prompt can also be disabled.

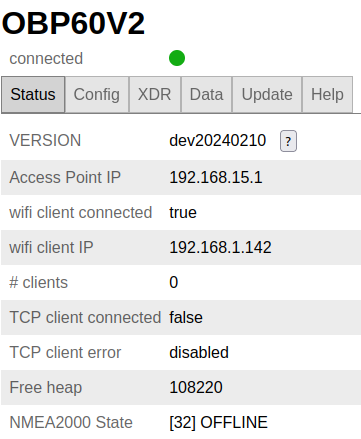

Status

The status page displays the WiFi connection status at the top.

The information has the following meaning:

Version

Current firmware version

Access Point IP

IP Address of Access Points

WiFi Client connected

Indicates whether the OBP40 is connected to a different external WiFi network as a client.

WiFi Client IP

IP address assigned to the OBP40

NMEA2000 in

Number of NMEA2000 telegrams received

NMEA2000 out

Number of NMEA2000 telegrams that were sent

TCP in

Number of NMEA0183 telegrams received via TCP

TCP out

Number of NMEA0183 telegrams sent over TCP

USB in

Number of NMEA0183 telegrams received via USB

USB out

Number of NMEA0183 telegrams sent via USB

Serial in

Number of NMEA0183 telegrams received via RS485

Serial out

Number of NMEA0183 telegrams sent via RS485

Clicking the question mark next to Version displays all telegrams that the OBP40 can process. More detailed information about the received telegrams can be found by expanding the row for the respective bus system. A table listing all NMEA0183 and NMEA2000 telegrams that can be processed is included in the appendix.

Note

For better understanding, it’s important to note that the OBP40 establishes its own independent Wi-Fi network; this function is also known as an access point. The number of TCP clients displayed in the status bar always refers only to the clients that are connected to the OBP40 in access point mode. The OBP40 can also connect to another, external Wi-Fi network by registering as a client. In this case, the OBP40’s own Wi-Fi network is bridged with the external Wi-Fi network. All data from the OBP40 is then available in both networks.

Config

The configuration page is divided into two sections. The firmware is based on the NMEA2000 Gateway project and utilizes the entire underlying structure of this software project. The functionality of the OBP40 is implemented as a separate task within the NMEA2000 Gateway firmware. The first section contains the configuration for the NMEA2000 Gateway. The second section contains the configuration for the OBP40 hardware and software. The second section is identified by the prefix “OBP”.

Configuration for the NMEA2000 gateway

Fig.: Configuration for the NMEA2000 gateway

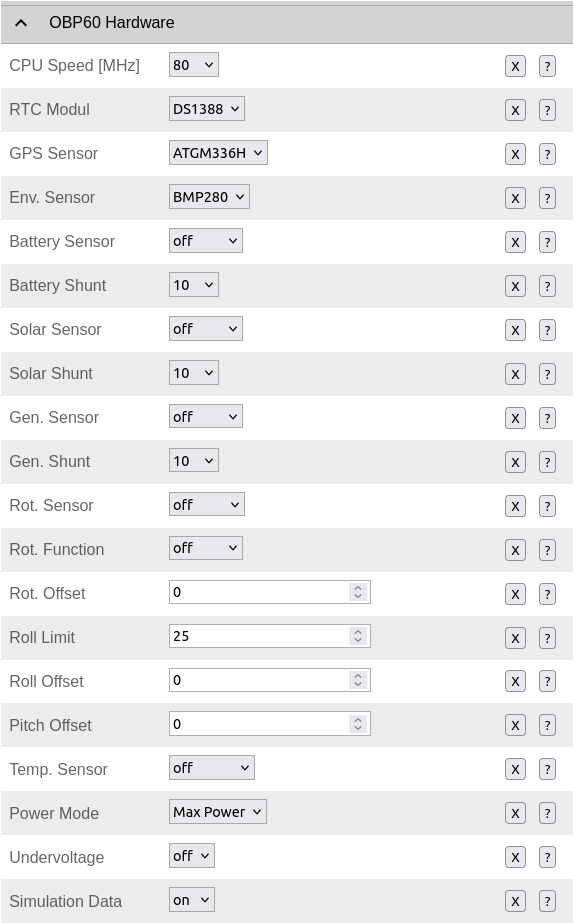

Fig.: Configuration for OBP40 hardware

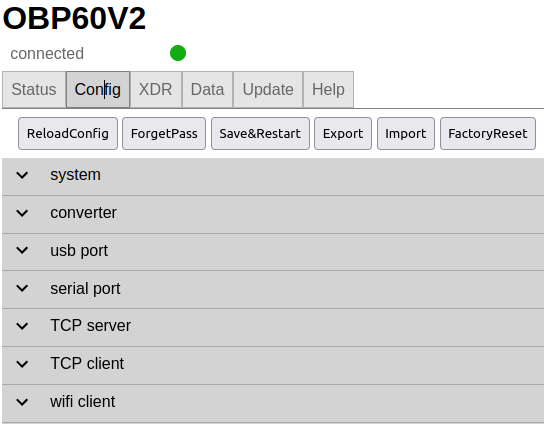

Several buttons are visible at the top of the configuration page. The meaning of these buttons is listed below:

• Reload Config - Reload the configuration

• Forget Pass - Remove the login password from the browser’s cache.

• Save & Restart - Save the configuration and then restart the firmware

• Export - Export a configuration as a JSON file

• Import - Importing a configuration via a JSON file

• Factory Reset - Reset all settings to factory defaults

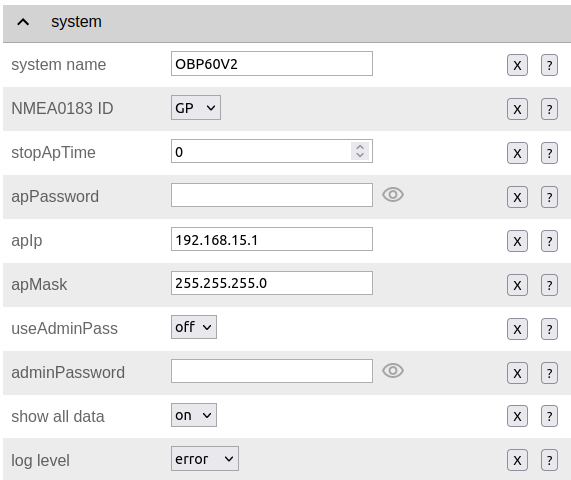

Config - System

Under System, basic settings are configured, such as:

System Name

• Device name of the OBP40. A name of up to 10 ASCII characters can be used here. Only letters and numbers are allowed. The hyphen and underscore are also permitted. Special characters are not allowed, as the device name is also used as the SSID in the Wi-Fi network.

NMEA0183 ID

• Here you can specify which prefix is used as the device ID in NMEA0183 telegrams. Different device IDs can be configured. Details can be found under the following Link.

Stop AP Time

• This setting allows you to specify after how long the WiFi access point should be switched off. The time is specified in seconds. A value of <0s> ensures that the WiFi access point remains on continuously.

AP Password

• Enter the password for the WiFi access point here. Only characters from the ASCII character set may be used.

AP Ip

• Here you can configure the IP address of the WiFi access point. By default, the IP address is 192.168.15.1. In exceptional cases, the IP address can be changed. Please note that if the IP address is changed, the OPB60 may no longer be reachable on your WLAN.

AP Mask

• This field specifies the subnet mask for the WiFi access point. The default subnet mask is 255.255.255.0. It is strongly recommended that you do not change this value unless you know exactly what the consequences of doing so would be.

Warning

Ensure that the address range of the WiFi access point differs from the address range of the network to which the OBP40 connects as a WiFi client. A network’s address range is identified by the first three groups of digits (111.222.333.xxx). Only the last group (xxx) is used for device identification within the same network. If you change the first three groups of digits in the address range, you will no longer be able to easily access the OPB60’s configuration pages. In most cases, changing the IP address or subnet mask will not be necessary. Therefore, only change the IP address and subnet mask if you have sufficient networking experience and understand the consequences of your changes.

Use Admin Pass

• This allows you to specify whether a password is required to change the configuration.

Admin Password

• Enter the administrator password here. Only characters from the ASCII character set may be used.

Show All Data

• If the menu displays on, all sensor data is shown in the Data area. Switching to off disables all sensor data in the Data area.

Log Level

• The Log Level setting allows you to adjust the level of detail in notifications sent via the USB-C interface. The following settings are available:

  • Off - No logging output

  • Error - Only error messages are displayed

  • Log - Error messages and status information are displayed.

  • Debug - All intended messages, including debug messages, are displayed.

Hint

If you intend to perform NMEA0183 data exchange via the USB-C interface, you should set the Log Level to off. Failure to do so can make evaluating log output very confusing, as log data and NMEA0183 telegrams will then be displayed mixed together. If you only want to see log output, set NMEA to USB and NMEA from USB to off.

Config - Converter

The following settings allow you to change the function of the NMEA2000 gateway.

Min XDR Interval

• Here you set the interval time for XDR signal processing. XDR telegrams are freely definable sensor telegrams. The interval time can be set from 10 ms. The default value is 100 ms. With the shortest interval time of 10 ms, a data processing rate of 100 Hz is achieved.

Min N2K Interval

• Here you set the interval time for NMEA2000 signal processing. The interval time can be set from 5 ms. The default value is 50 ms.

Note

Keep in mind that short interval times place a high load on the processor. Adjust the value so that your data can still be processed correctly. Most applications can run smoothly with the default values of 100 ms for the XDR interval and 50 ms for the N2K interval.

NMEA2000 out

• Here you can configure whether NMEA2000 telegrams are transmitted to the NMEA network.

  • On - Output of NMEA2000 data

  • Off - No output of NMEA2000 data

Config - USB Port

The functions of the USB port can be configured in detail via the USB Port page.

USB Mode

• The format defines how data is processed at the USB port. The Actisense format allows NMEA2000 telegrams to be received and processed by external software. Actisense data is translated within the device into NMEA2000 and NMEA0183 data. For example, the Actisense Simulations- und Diagnosesoftware can be used to analyze the bus data.

• Nmea0183 - Processing in NMEA0183 format

• Actisense - Processing in Actisense format

USB Baud Rate

• Here you can adjust the interface speed of the serial USB interface. Speeds between 1200 baud and 460800 baud can be set.

Hint

Set the interface speed high enough to process all data telegrams within the transmission interval. The default value of 115,200 baud is sufficient for most applications.

The following three settings allow you to configure the data direction at the USB-C interface. A distinction is made between NMEA0183 and NMEA2000.

NMEA to USB

• On - NMEA0183 data is output to the USB interface

• Off - NMEA0183 data is not output to the USB interface

NMEA from USB

• On - NMEA0183 data is received from the USB interface

• Off - NMEA0183 data is not being received from the USB interface

USB to NMEA2000

• On - Data is forwarded from the USB interface to the NMEA2000 bus

• Off - Data is not being passed from the USB interface to the NMEA2000 bus

The next two settings configure the USB read Filter and USB write Filter for reading and writing data via the USB interface. Only NMEA0183 data can be filtered. It is possible to configure separately whether AIS position signals are processed. The available filter types are <Whitelist> and <Blacklist>: Whitelist allows you to specify filter criteria that should include the data, while Blacklist specifies criteria that exclude certain data.

USB Filter

• Aison - AIS data is processed at the USB interface.

• Aisoff - AIS data on the USB interface is not processed.

• Blacklist - The filter uses a blacklist. The flagged telegrams will not be processed.

• Whitelist - The filter works with a whitelist. Only the listed telegrams are processed.

The input field is used to enter the short identifiers of the NMEA0183 telegrams. Multiple entries are separated by commas ,. The following short identifiers can be used:

• DBK, DBS, DBT, DPT, GGA, GLL, GSA, GSV, HDM, HDT, MTW, MWD, MWV, RMB, RMC, ROT, RSA, VHW, VTG, VWR, XDR, XTE, ZDA

The exact meaning of the abbreviations is explained in hier.

Hint

Filter functions are a powerful tool for controlling data flows. Before configuring them, consider how your data flows should look on the boat and create a sketch of it. Use the filters so that they only send and receive the data they actually need. Distinguish between what should be sent and what should be received, and under no circumstances create data loops.

Warning

Data loops lead to device malfunctions. In data loops, the same data circulates through multiple devices in a loop. This results in high transmission rates because the same data is continuously sent and received. The processor load increases to its maximum. In some cases, the device may fail, no longer be able to process the incoming data in a timely manner, or become unusable. Note that this condition can also occur if additional devices are subsequently connected to the bus system.

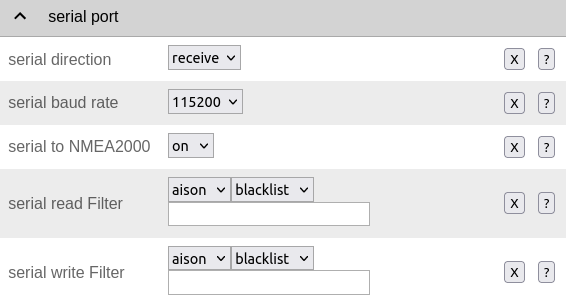

Config - Serial Port

Settings for the serial NMEA0183 interface can be configured via serial port. These settings relate to the RS485 interface on connector CN1 with the signals A, B and Shield.

Serial Direction

• Off - The NMEA0183 interface is switched off.

• Send - The NMEA0183 interface sends

• Receive - The NMEA0183 interface receives

Note

The serial interface is RS485 and RS422 compliant and operates in half-duplex mode. It can either send or receive data; both simultaneously are not possible. If you require full-duplex transmission for NMEA0183 data, you can use the USB-C interface. However, this interface is not RS485 or RS422 compliant. It can be useful if you want to process data, for example, in OpenCPN on a PC or laptop.

Serial Baud Rate

• Baud rate setting between 1,200 and 460,800 baud.

Serial To NMEA2000

• On - Data at the interface is transmitted according to NMEA2000 (gateway function)

• Off - Data at the interface is not transmitted according to NMEA2000.

The next two settings configure the Serial Read Filter and Serial Write Filter for reading and writing data on the serial interface. Only NMEA0183 data can be filtered. It is possible to configure separately whether AIS position signals are also processed. Whitelist and blacklist filters are available.

Serial Filter

• Aison - AIS data is processed at the USB interface.

• Aisoff - AIS data on the USB interface is not processed.

• Blacklist - The filter uses a blacklist. The flagged telegrams will not be processed.

• Whitelist - The filter works with a whitelist. Only the listed telegrams are processed.

The input field is used to enter the short identifiers of the NMEA0183 telegrams; multiple entries are separated by commas ,. The following short identifiers can be used:

• DBK, DBS, DBT, DPT, GGA, GLL, GSA, GSV, HDM, HDT, MTW, MWD, MWV, RMB, RMC, ROT, RSA, VHW, VTG, VWR, XDR, XTE, ZDA

The exact meaning of the abbreviations is explained in hier.

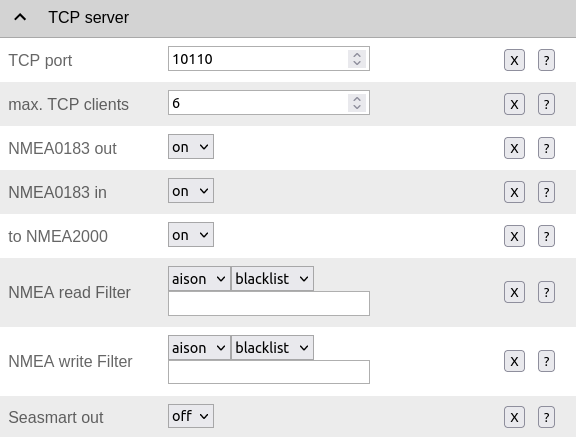

Config - TCP Server

Here you configure the settings for operating the OPB60 as a TCP server. The TCP server is a server service that allows data to be read and written. A network device actively connects to the server as a client via a TCP port and can then exchange data with the TCP server.

Note

The login process must always be initiated by the client. In case of connection interruptions, the client must re-establish the connection automatically. Ensure that the client has an auto-connect function. Otherwise, you will permanently lose the data connection in case of interruptions.

TCP Port

• Specifies the TCP port on which the server listens for incoming connection requests. The default value is 10110. Use only ports greater than 1024, as ports below 1024 are reserved for specific applications. The maximum value is 65535.

Max TCP Clients

• Specifies the maximum number of clients allowed to connect to the TCP server. The default value is 6.

Note

Please note that a high number of clients can place a heavy load on the CPU. Therefore, ensure that no more than 6 clients can connect to the server at any one time. Otherwise, data processing may be impaired, or the device may become unresponsive.

NMEA0183 Out

• On - NMEA0183 data is output on the TCP port.

• Off - No NMEA0183 data is output on the TCP port.

NMEA0183 In

• On - NMEA0183 data is received on the TCP port.

• Off - No NMEA0183 data is being received on the TCP port.

To NMEA2000

• On - Data on the TCP port is transmitted according to NMEA2000 (gateway function)

• Off - Data on the TCP port is not transmitted according to NMEA2000

The next two settings configure the NMEA Read Filter and NMEA Write Filter for reading and writing on the TCP port. Only NMEA0183 data can be filtered. It is possible to separately configure whether AIS position signals are processed. The available filter types are “Whitelist” and “Blacklist”.

NMEA Read Filter

• Aison - Incoming AIS data at the USB interface is processed.

• Aisoff - Incoming AIS data at the USB interface is not processed.

• Blacklist - The filter uses a blacklist. The flagged telegrams will not be processed.

• Whitelist - The filter works with a whitelist. Only the listed telegrams are processed.

NMEA Write Filter

• Aison - AIS data to be sent via the USB interface is being processed.

• Aisoff - AIS data to be sent via the USB interface will not be processed.

• Blacklist - The filter uses a blacklist. The flagged telegrams will not be processed.

• Whitelist - The filter works with a whitelist. Only the listed telegrams are processed.

The input field is used to enter the short identifiers of the NMEA0183 telegrams; multiple entries are separated by commas ,. The following short identifiers can be used:

• DBK, DBS, DBT, DPT, GGA, GLL, GSA, GSV, HDM, HDT, MTW, MWD, MWV, RMB, RMC, ROT, RSA, VHW, VTG, VWR, XDR, XTE, ZDA

The exact meaning of the abbreviations is explained in hier.

Seasmart Out

• SeaSmart allows you to translate NMEA2000 data into NMEA0183 telegrams. When you activate SeaSmart, all NMEA2000 data is output and tunneled via NMEA0183 telegrams. The data is transmitted in binary form within an NMEA0183 telegram. This allows you to transfer NMEA2000 data from one OBP40 (TCP server) to another OBP40 (TCP client) over Wi-Fi. Ensure that SeaSmart is also activated on the receiving end.

• On - The TCP server can send and receive Seasmart data.

• Off - Seasmart is not supported by the TCP server

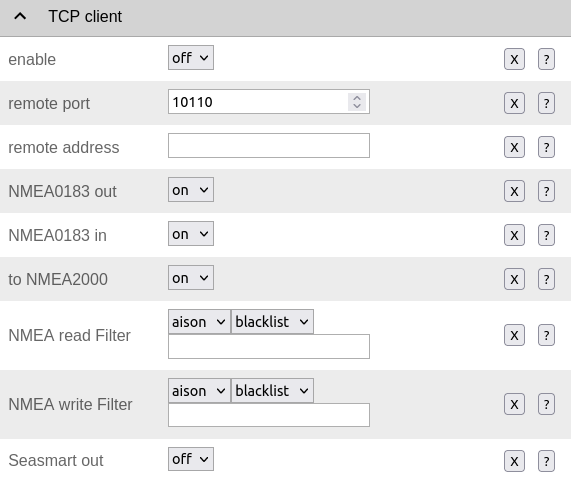

Config - TCP Client

Here you configure the settings for operating the OPB60 as a TCP client. The OBP40 can exchange data with a TCP server in read and write mode as a TCP client. The OBP40 actively registers as a client with the TCP server via a TCP port and can then exchange data with the server. The TCP client mode includes an auto-connect feature to automatically re-establish the connection after a connection interruption.

Enable

• On - TCP client mode is enabled in the OBP40

• Off - TCP client mode is disabled

Remote Port

• Specifies the TCP port over which data will be exchanged with a TCP server. The default value is 10110. For data exchange between a TCP server and a TCP client to occur, the TCP client must use the same port that the TCP server uses for communication. Only use ports greater than 1024, as ports below 1024 are reserved for specific applications. The maximum value is 65535.

Remote Address

The <Remote Address> is the address of the TCP server on the Wi-Fi network with which you want to exchange data. You can use an IP address such as 192.168.15.1 or an MDNS hostname such as OBP40V2.local.

Warning

If you want to exchange data between two OBP40 devices via Wi-Fi, both devices must be on the same wireless network and have different system names. Your access points must be in the same IP address range but have different device addresses. One device must be configured as a TCP server and the other as a TCP client. These settings are configured under Config - System. Failure to follow these instructions may result in Wi-Fi data traffic disruptions and you may lose access to the devices’ web configuration interfaces.

NMEA0183 Out

• On - NMEA0183 data is output on the TCP port.

• Off - No NMEA0183 data is output on the TCP port.

NMEA0183 In

• On - NMEA0183 data is received on the TCP port.

• Off - No NMEA0183 data is being received on the TCP port.

To NMEA2000

• On - Data on the TCP port is transmitted according to NMEA2000 (gateway function)

• Off - Data on the TCP port is not transmitted according to NMEA2000

The next two settings configure the NMEA Read Filter and NMEA Write Filter for reading and writing on the TCP port. Only NMEA0183 data can be filtered. It is possible to separately configure whether AIS position signals are processed. Whitelist and blacklist filters are available.

NMEA Read Filter

• Aison - Incoming AIS data at the USB interface is processed.

• Aisoff - Incoming AIS data at the USB interface is not processed.

• Blacklist - The filter uses a blacklist. The flagged telegrams will not be processed.

• Whitelist - The filter works with a whitelist. Only the listed telegrams are processed.

NMEA Write Filter

• Aison - AIS data to be sent via the USB interface is being processed.

• Aisoff - AIS data to be sent via the USB interface will not be processed.

• Blacklist - The filter uses a blacklist. The flagged telegrams will not be processed.

• Whitelist - The filter works with a whitelist. Only the listed telegrams are processed.

The input field is used to enter the short identifiers of the NMEA0183 telegrams; multiple entries are separated by commas ,. The following short identifiers can be used:

• DBK, DBS, DBT, DPT, GGA, GLL, GSA, GSV, HDM, HDT, MTW, MWD, MWV, RMB, RMC, ROT, RSA, VHW, VTG, VWR, XDR, XTE, ZDA

The exact meaning of the abbreviations is explained in hier.

SeaSmart Out

• SeaSmart allows you to translate NMEA2000 data into NMEA0183 telegrams. When you activate SeaSmart, all NMEA2000 data is output and tunneled via NMEA0183 telegrams. The data is transmitted in binary form within an NMEA0183 telegram. This allows you to transfer NMEA2000 data from one OBP40 (TCP server) to another OBP40 (TCP client) via Wi-Fi. Ensure that SeaSmart is also activated on the receiving end.

• On - The TCP server can send and receive SeaSmart data.

• Off - SeaSmart is not supported by the TCP server

Config - WiFi Client

The OBP40 can be operated as a WiFi access point or as a WiFi client. In this mode, the OBP40 can join another WiFi network and exchange data. This allows you to integrate the OBP40 into your existing onboard WiFi system. The WiFi client mode includes an auto-connect feature to automatically reconnect after connection interruptions.

WiFi Client

• On - WiFi client mode is enabled

• Off - WiFi client mode is not supported

WiFi Client SSID

• Enter a Wi-Fi network name here, for example, the name of your ship’s Wi-Fi. Any character from the ASCII character set can be used as the name.

WiFi Client Pasword

• Enter the Wi-Fi password for the SSID mentioned above here. Any character from the ASCII character set can be used as the password. As you type, the password will be hidden with asterisks *****. Clicking the eye icon will display the password in plain text.

Hint

If you are having trouble connecting to other Wi-Fi networks, check if the network name or password contains special characters. In some situations, special characters or excessively long passwords can cause connection problems. Try changing the network name or password. Sometimes restarting your onboard router, to whose Wi-Fi network you are trying to connect the OPB60, also helps.

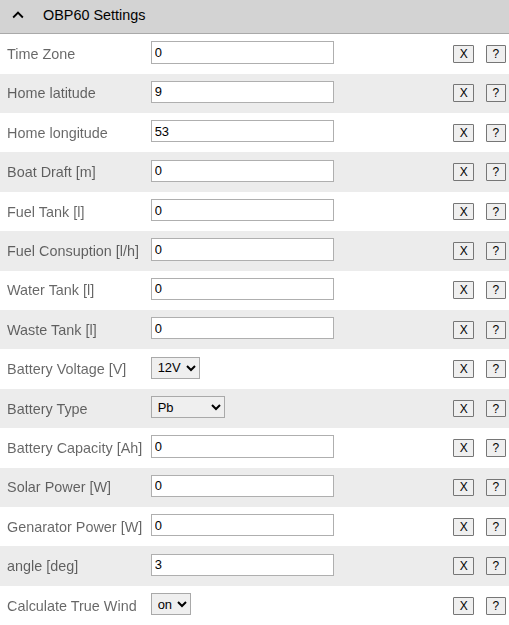

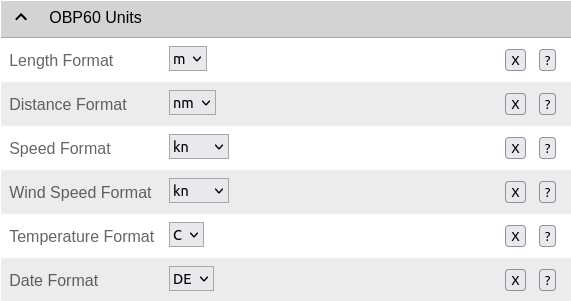

Config - OBP Settings

On the OBP40 Settings page, you can configure settings specific to your boat, in which the OBP40 is installed. The entered values are used, for example, to provide an approximate range estimate for water, fuel, and battery. Please enter the values for your boat as accurately as possible, paying attention to the corresponding units. These settings also allow you to display various operating states on the OPB60 in graphs.

Warning

Keep in mind that the range estimate provided by the internal voltage sensor should only be considered a guideline. Particularly with AGM and LiFePO4 battery types, you should expect greater inaccuracies. Observe and verify the results under real-world conditions before relying on the displayed values.

Time Zone

• The time zone can be set in the range of -12 and +14 hours via Time Zone.

Most settings should be self-explanatory. Unless you are using solar panels, leave the Solar Power value at 0. Generator Power refers to an electric generator operating on the boat. This could be an alternator, a wind generator, a towed generator, or another auxiliary generator. The power ratings for Solar Power and Generator Power are needed to visualize the energy flows.

Config - OBP Units

The unit settings are configured under OBP Units. Different units can be used for the respective physical quantities.

Date Format

• The Date Format option allows you to customize the date output format.

• DE - German date format 31.12.2024

• GB - British date format 31/12/2024

• US - US Date Format 12/31/2024

Config - OBP Hardware

Under Hardware, all settings relating to the OPB60’s built-in hardware or external add-on hardware are configured. The default settings correspond to the minimum settings for an OBP40 device. Depending on the installed hardware, different sensors and functions may be used.

CPU Speed

• CPU clock speed. The clock speed is changed 1 minute after the boot process is complete.

• 80 - 80 MHz

• 160 - 160 MHz

• 240 - 240 MHz

RTC Module

• Type of real-time clock

• Off - No real-time clock is used

• DS1388 - DS1388 real-time clock (Default)

GPS Sensor

• Type of GPS Sensors

• Off - No GPS sensor is used

• NEO-6M - GPS Sensor NEO-6M

• NEO-M8N - Higher-quality GPS sensor NEO-M8N

• ATGM336H - GPS-Sensor ATGM336H (Default)

Env. Sensor

• Information about the environmental sensor used. Various sensors can be selected. The sensors are connected to the I2C bus. Internal OBP40 device sensors or external sensors can be selected.

• Off - No environmental sensor is used

• BME280 - Sensor for temperature, humidity and air pressure

• BMP280 - Temperature and air pressure sensor (Default)

• BMP180 - Sensor for temperature and air pressure

• BME085 - Sensor for temperature and air pressure

• HTU21 - Temperature and humidity sensor

• SHT21 - Temperature and humidity sensor

Battery Sensor

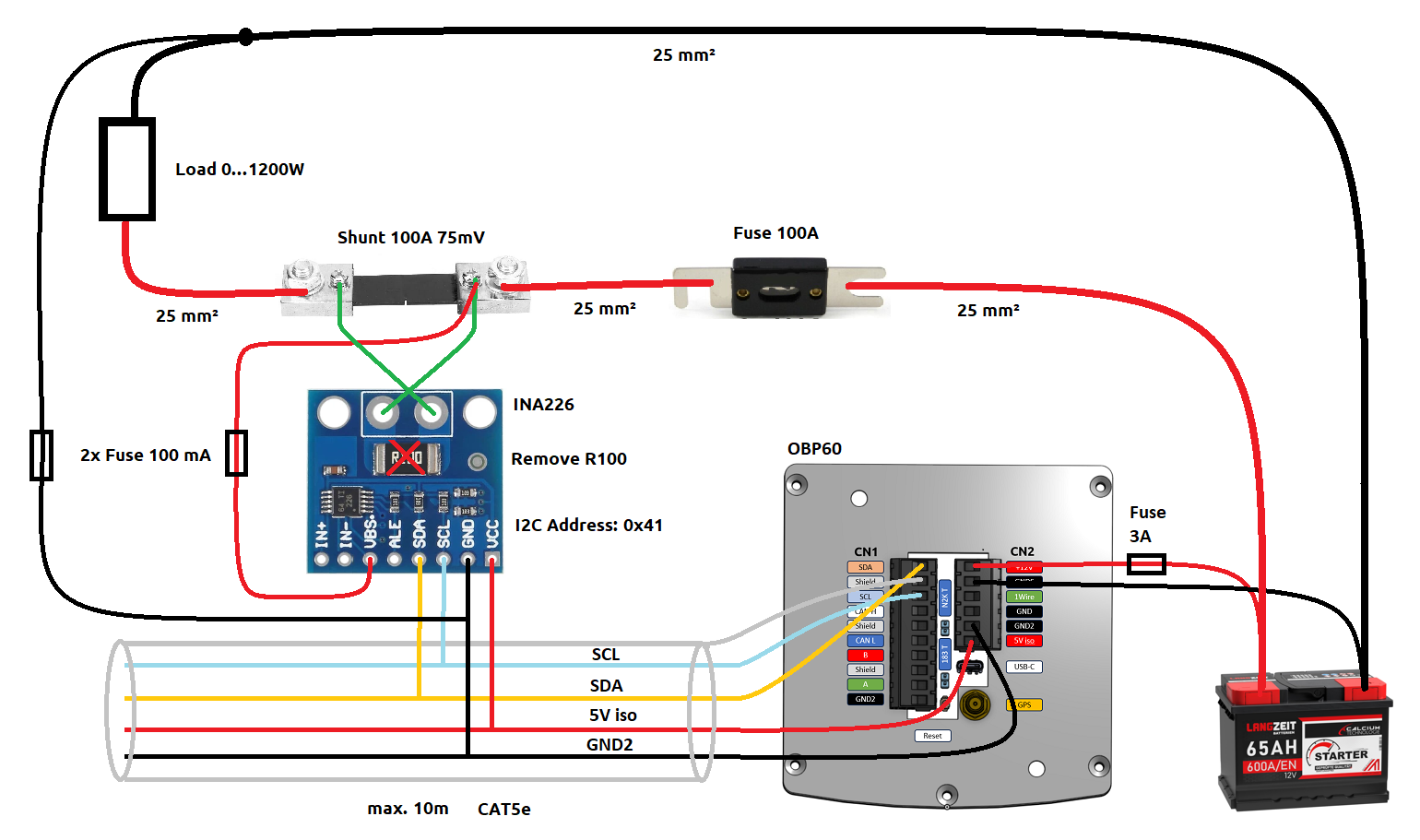

• Here, sensors can be selected that are connected to the external I2C bus and read battery values.

• Off - No sensor is used

• INA219 - Sensor for voltage 0…36V, current 0…500A and power, I2C address 0x40

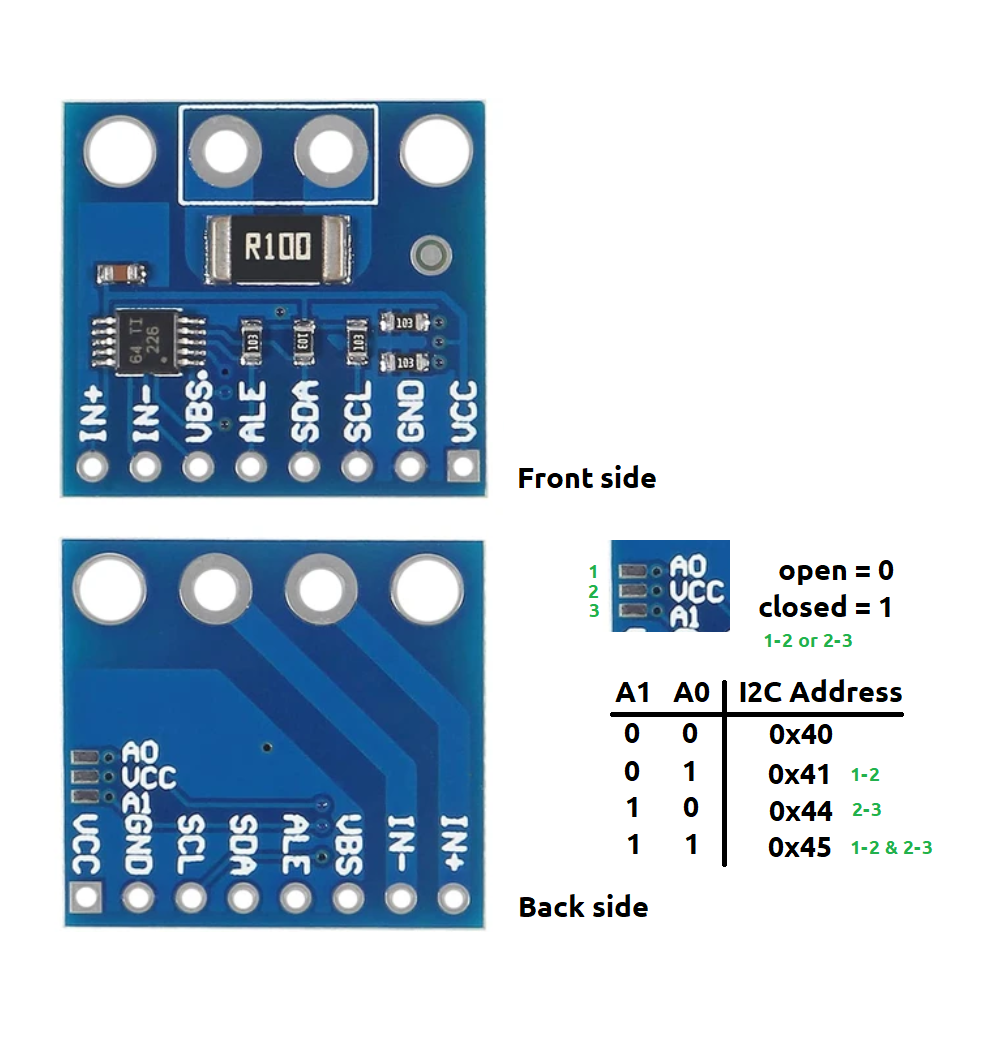

• INA226 - Sensor for voltage 0…36V, current 0…500A and power, I2C address 0x41

Battery Shunt

• Here you can select the shunt used to measure the battery current. Only shunts with a voltage drop of 75 mV at maximum current can be used. This information can be found on the shunt itself.

• 10 - Shunt for 10A

• 50 - Shunt for 50A

• 100 - Shunt for 100A

• 200 - Shunt for 200A

• 300 - Shunt for 300A

• 400 - Shunt for 400A

• 500 - Shunt for 500A

Solar Sensor

• Here, sensors can be selected that are connected to the external I2C bus and read solar values.

• Off - No sensor is used

• INA219 - Sensor for voltage 0…36V, current 0…500A and power, I2C address 0x41

• INA226 - Sensor for voltage 0…36V, current 0…500A and power, I2C address 0x44

Solar Shunt

• Here you can select the shunt used to measure solar current. Only shunts with a voltage drop of 75 mV at maximum current can be used. This information can be found on the shunt itself.

• 10 - Shunt for 10A

• 50 - Shunt for 50A

• 100 - Shunt for 100A

• 200 - Shunt for 200A

• 300 - Shunt for 300A

• 400 - Shunt for 400A

• 500 - Shunt for 500A

Generator Sensor

• Here, sensors can be selected that are connected to the external I2C bus and read generator values.

• Off - No sensor is used

• INA219 - Sensor for voltage 0…36V, current 0…500A and power, I2C address 0x45

• INA226 - Sensor for voltage 0…36V, current 0…500A and power, I2C address 0x45

Solar Shunt

• Here you can select the shunt used to measure solar current. Only shunts with a voltage drop of 75 mV at maximum current can be used. This information can be found on the shunt itself.

• 10 - Shunt for 10A

• 50 - Shunt for 50A

• 100 - Shunt for 100A

• 200 - Shunt for 200A

• 300 - Shunt for 300A

• 400 - Shunt for 400A

• 500 - Shunt for 500A

Rot. Sensor

• The sensor for angle measurement, located on the external I2C bus, can be selected via Rot.Sensor.

• Off - No sensor is used

• AS5600 - Magnetic sensor for angle measurement from 0° to 360° without end stop, I2C address 0x36

Rot. Function

• Function of the angle sensor

• Rudder - Angle sensor for rudder position

• Wind - Angle sensor for wind direction

• Mast - Angle sensor for mast alignment on rotatable masts

• Keel - Angle sensor for keel inclination

• Trim - Angle sensor for trim tabs or foils

• Boom - Angle sensor for large tree

Rot. Offset

Angle sensor offset. This allows the zero point of external angle sensors on the I2C bus to be corrected.

Roll Limit

Roll Limit specifies the maximum permissible lateral tilt angle for the boat’s rolling. Under real-world conditions, 20 degrees is a realistic limit.

Roll Offset

Offset of the tilt angle sensor. This allows the zero point of the angle sensor to be corrected for the lateral roll of your boat.

Pitch Offset

Offset of the angle sensor for pitch. This allows the zero point of the angle sensor for the pitch of your boat to be corrected.

Temp Sensor

• Here you can select the sensor type that is used on the 1-Wire bus.

• Off - No sensor is used

• DS18B20 - Temperature sensor -10…+85°C (1…8 sensors)

Power Mode

These settings are irrelevant for the OBP40. Power savings can be achieved by reducing the CPU speed and configuring the access point to automatically deactivate after a defined period. The potential savings are shown in the table below.

Components	Power [W]	Power [%]
CPU 240 MHz, WiFi, AP	1.78	100
CPU 160 MHz, WiFi, AP	1.68	94
CPU 80 MHz, WiFi, AP	1.58	89
CPU 240 MHz, WiFi	1.16	65
CPU 160 MHz, WiFi	1.07	60
CPU 80 MHz, WiFi	0.96	54
Deep Sleep	0.01	0.006

Tab.: Stromverbrauch OBP40 V1 (AP - Access Point)

Undervoltage

• Undervoltage detection. If an undervoltage below 3.65 V is detected, the OBP40 can be automatically deactivated to help prevent deep discharge of the LiPo battery. In critical situations, the OBP40 can remain functional despite an undervoltage of up to 3.65 V if the undervoltage protection is deactivated. Undervoltage protection is enabled by default. If an undervoltage occurs while enabled, the OBP40 is deactivated and put into deep sleep mode. The message Undervoltage appears on the display. This state can only be changed by pressing the selection wheel.

• On - The undervoltage protection is activated

• Off - The undervoltage protection is switched off.

Hint

If you want to power the OBP40 via USB, the undervoltage detection must be switched off, otherwise the device will switch off automatically.

Simulation Data

• Simulation Data allows you to simulate bus and sensor data. This function is useful when you want to test the functionality of the device in its removed state, without any connected buses or sensors. The device then operates in demo mode.

• On - Sensor data is replaced by simulation data

• Off - Live sensor data is used

Warning

Keep in mind that simulation data can be misinterpreted as live data. Only use simulation data when you do not need the OBP40 for navigation, and switch back to live data after use by exiting simulation mode.

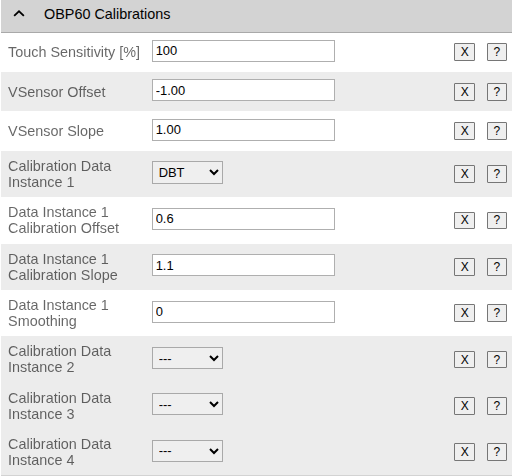

Config - OBP Calibrations

On the Calibrations page, calibration settings can be configured. This allows you to correct inaccuracies in certain measured values. Depending on the sensor, the correction can be performed using either a linear or quadratic correction.

Touch Sensitivity

• Key sensitivity setting: 0…100%. 0% means minimum sensitivity. 100% means maximum sensitivity.

VSensor Offset

• Offset of the correction function of the OBP40’s internal voltage sensor

VSensor Slope

• Slope of the correction function of the OBP40’s internal voltage sensor

Calibration Data Instance [1..3]

• Select up to three data types to be calibrated. The available data types appear when you open the drop-down list. Once you have selected a data type, the configuration parameters described below appear. Selecting --- disables calibration for that data type.

Data Instance [1..3] Calibration Offset

• Offset of the correction function for the selected data type

Data Instance [1..3] Calibration Slope

• Slope of the correction function for the selected data type

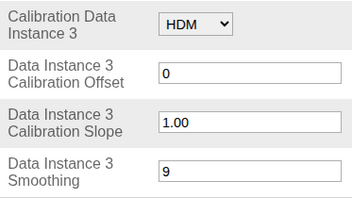

Data Instance [1..3] Smoothing

• This applies smoothing or attenuation to the respective data type. A setting in the range [0..10] is possible. 0 means “no smoothing”, 10 achieves maximum smoothing.

The Exponential Smoothing Algorithm is used for smoothing, and its strength can be adjusted via a parameter (values between 0 and 10). The new smoothed value s is calculated from the current measurement x, the previous smoothed value, and the weighting factor a.

\[S_t=s_{t-1}+a(x_t-s_{t-1})\]

On the configuration page, the value a is not entered directly, but rather the auxiliary parameter k, where the setting k=0 results in no damping (i.e. a=1), and values for k greater than 0 are calculated as follows:

\[A=1-(0.3 + ((k - 0.01) * (0.95 - 0.3) / (10 - 0.01)))\]

This illustrates how different values of this parameter affect a signal: The first figure shows how a single outlier is suppressed with different settings. The second figure shows how a jump in the input data is transformed into a slower increase. In practice, a compromise must be made here so that, on the one hand, short-term fluctuations are effectively dampened, and on the other hand, actual changes do not take too long to become visible.

Fig.: Damping effect on outliers

Fig.: Damping of rapid, abrupt changes

The x-axis of the diagrams shows the number of data updates, i.e., they correspond to a time axis in seconds if the measurement is updated once per second.

Attention

The default slope for each calibration value is 1. If 0 is entered here, every data value will also be set to 0. The default for the configuration parameters Offset and Smoothing is 0.

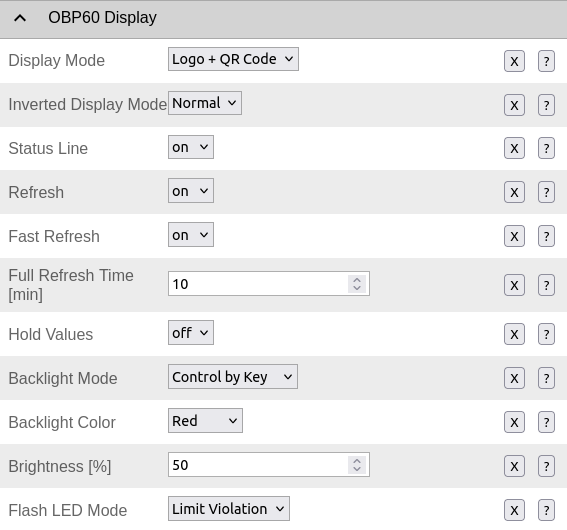

Config - OBP Display

The Display section contains all settings that affect the display.

Display Mode

• The Display Mode determines how the display behaves immediately after being switched on.

• Logo + QR Code - The logo and QR code for WiFi access are displayed.

• Logo - Only the logo is displayed.

• White Screen - A white page is displayed.

• Off - The display is deactivated; it is not used for display.

Inverted Display Mode

• Normal - The screen content is displayed in black on a white background.

• Inverse - The screen content is displayed in white on a black background.

Status Line

• On - The status bar is displayed at the top of the screen.

• Off - The status bar is disabled.

Refresh

• On - Auto-refresh of the screen content is enabled. This prevents ghosting when switching pages. A full refresh of the e-paper display is performed. An additional full refresh occurs automatically every 10 minutes.

• Off - Auto-refresh is disabled

Note

The appearance of ghost images depends on the OBP40’s display temperature. At lower temperatures, ghost images are more noticeable, and the display reacts more slowly than at higher temperatures. For the first five minutes after powering on, a full refresh is performed every minute to allow the display to acclimatize. In extremely bright sunlight, the display’s contrast may be lost, with black areas appearing gray. This is not a defect. After a full refresh, the display recovers, and the contrast is fully restored.

Fast Refresh

• On - With Fast Refresh enabled, a full refresh is performed faster. Fewer black-to-white transitions are made.

• Off - With Fast Refresh disabled, a full refresh is performed more slowly because more black-to-white transitions are made.

Full Refresh Time

• The Full Refresh Time setting allows you to define how often a full refresh should occur. Full refreshes are important for the e-paper display because, after a certain period of partial updates, the display needs a full refresh to recover and maintain its functionality. During a full refresh, the display contrast is fully restored.

Note

Depending on the type of display, strong sunlight can cause a loss of contrast after some time. To minimize this effect, Fast Refresh should be deactivated and the Full Refresh Time set to 1 minute. This significantly improves the display’s recovery time.

The following table serves as a guide on how to adjust the display settings:

Parameter	Temp <= 20°C	Temp > 20°C	Direct sunlight
Refresh	Off	On	On
Fast Refresh	On	On	Off
Full Refresh Time	10 Min	5 Min	1 Min

Hold Values

• On - Display values are retained if the data connection is briefly interrupted and the data cannot be updated. This setting can be useful for TCP connections over WiFi.

• Off - Display values are not retained. If the data connection is interrupted for longer than 5 seconds, missing data is marked with ---.

Backlight Mode

These settings are irrelevant for the OBP40, as it does not have backlighting.

Backlight Color

These settings are irrelevant for the OBP40, as it does not have backlighting.

Brightness

These settings are irrelevant for the OBP40, as it does not have backlighting.

Flash LED Mode

These settings are irrelevant for the OBP40, as it does not have backlighting.

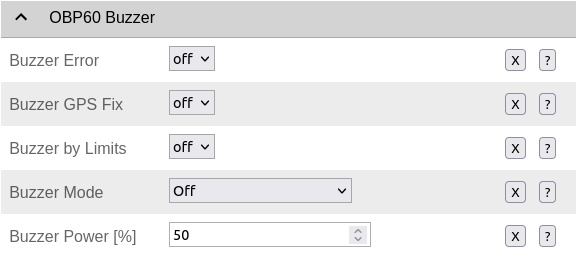

Config - OBP Buzzer

This section allows you to configure the buzzer’s functions. The buzzer serves to acoustically signal system states and malfunctions of the OBP40.

Buzzer Error

• On - The buzzer sounds in case of malfunctions and errors.

• Off - The function is disabled.

Buzzer GPS Fix

• On - The buzzer sounds when the GPS signal is lost.

• Off - The function is disabled.

Buzzer by Limits

• On - The buzzer sounds when the limit is exceeded.

• Off - The function is disabled.

Buzzer Mode

• Off - The buzzer is permanently switched off.

• Short Single Beep - A short single tone sounds when activated.

• Longer Single Beep - When activated, a longer single tone sounds.

• Beep until Confirmation - When activated, the buzzer will sound until it is deactivated by pressing any key.

Buzzer Power

The Buzzer Power setting allows you to adjust the volume of the warning tone between 0 and 100%. This volume setting applies to all audio output.

Config - OBP Pages

The configuration of the OPB60’s possible display pages is done on the Pages page. Here you specify how many display pages the OPB60 should show. You can also specify which display page should be shown when the device is switched on.

Number of Pages

• Here you set the maximum number of display pages. At least one display page must be defined; a maximum of 10 display pages can be activated.

Start Page

• This value determines which page should be displayed at startup. Only pages within the specified number of pages can be displayed.

Screenshot Format

• Specifies which image output format is used for screenshots. The following formats are available:

• Compressed Image (GIF) - Compressed GIF file

• Portable Bitmap (PBM) - Binary image format without header (cannot be displayed in browser)

• Windows Bitmap (BMP) - Binary image format with header

• A screenshot can be taken by visiting the following website:

• Http://192.168.15.1/api/user/OBP60Task/screenshot

Config - OBP Page X

The OBP40 offers up to 10 customizable pages. The amount of data displayed varies depending on the page. Some pages are freely definable, allowing you to select the content to be displayed. Others have predefined, non-editable content. Most numeric pages are editable, while graphical pages often display predefined content.

• Pages with editable content

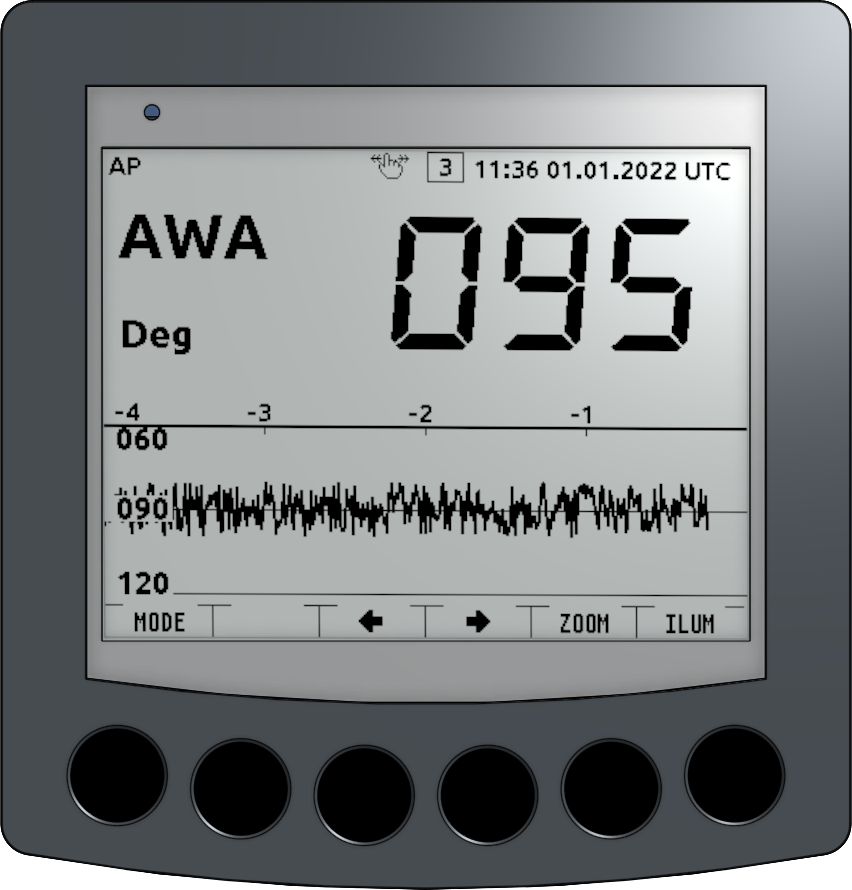

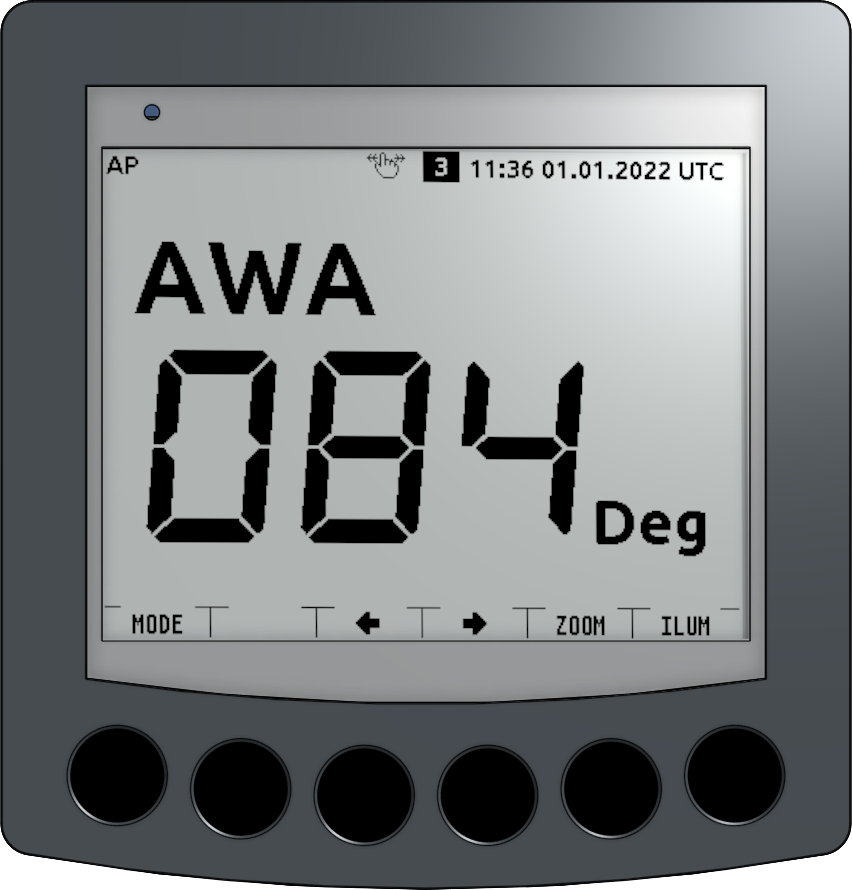

  • OneValue - One display value

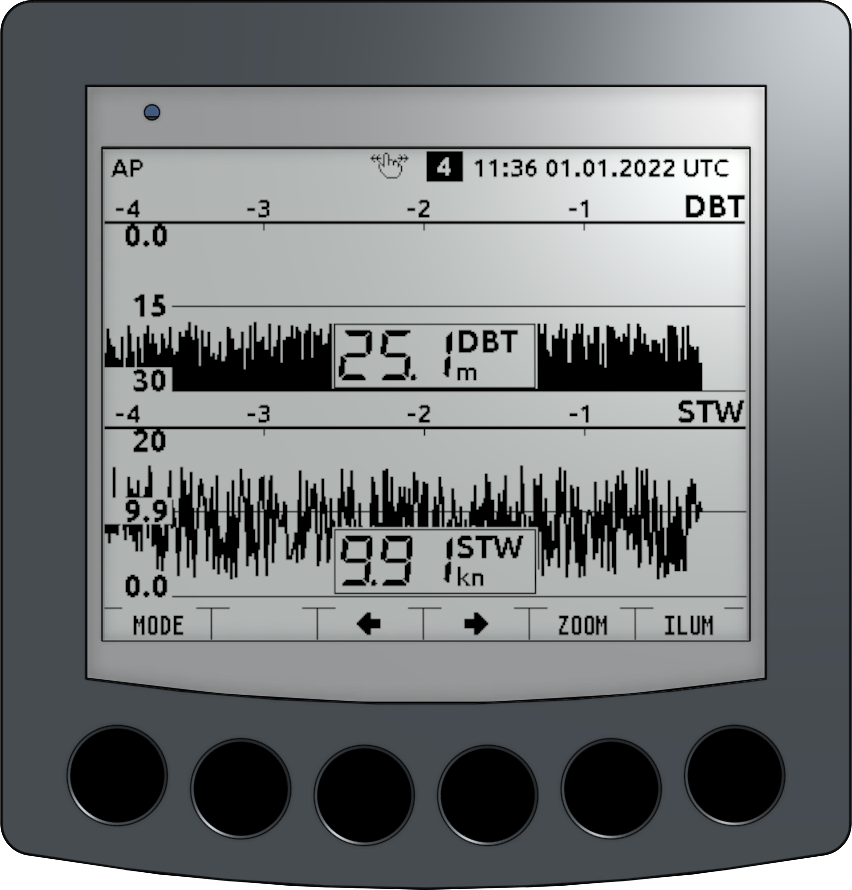

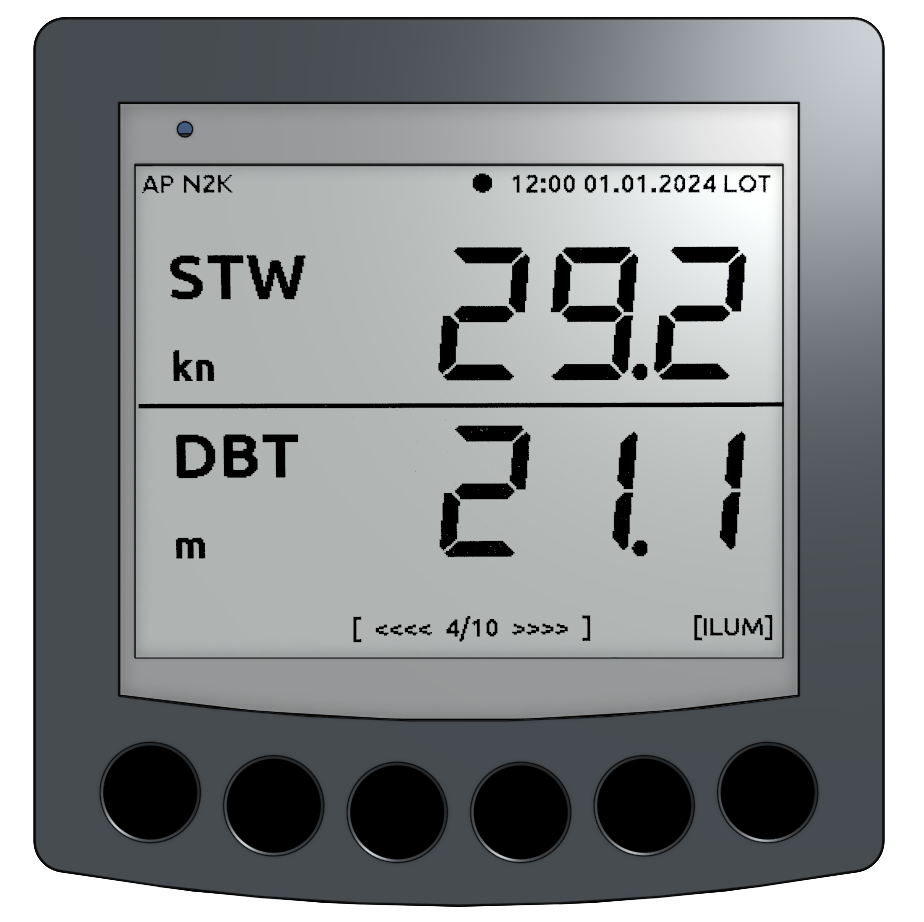

  • TwoValue - Two display values

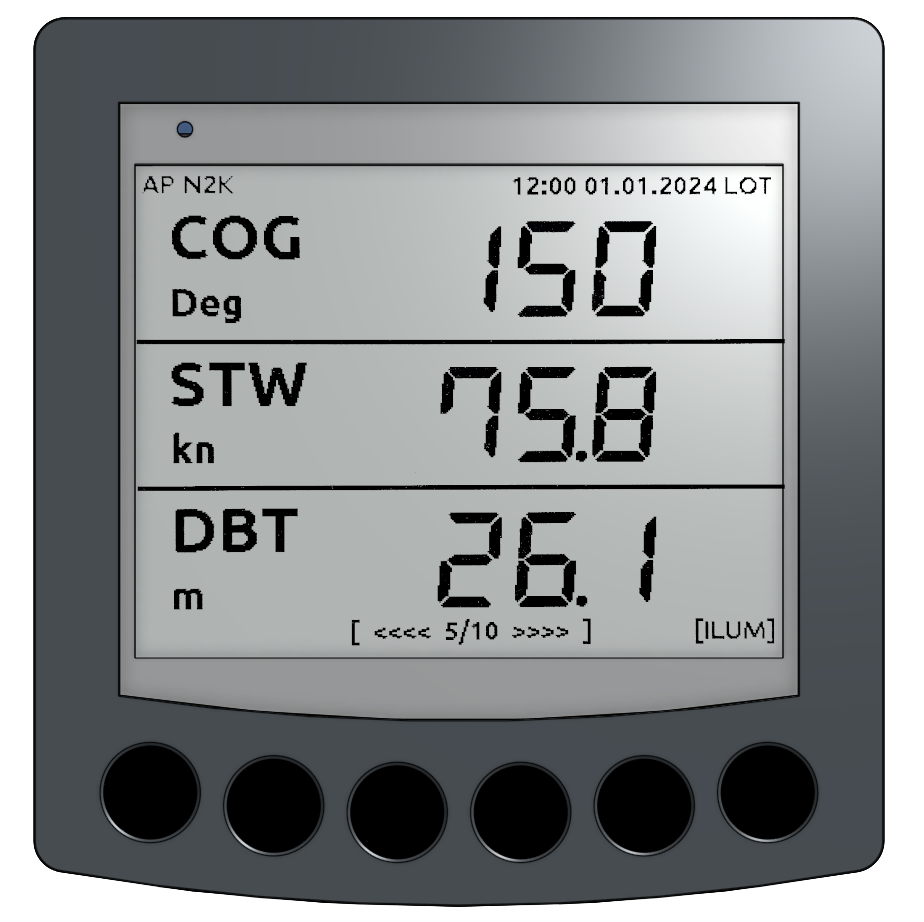

  • ThreeValue - Three display values

  • FourValue - Four Display Values

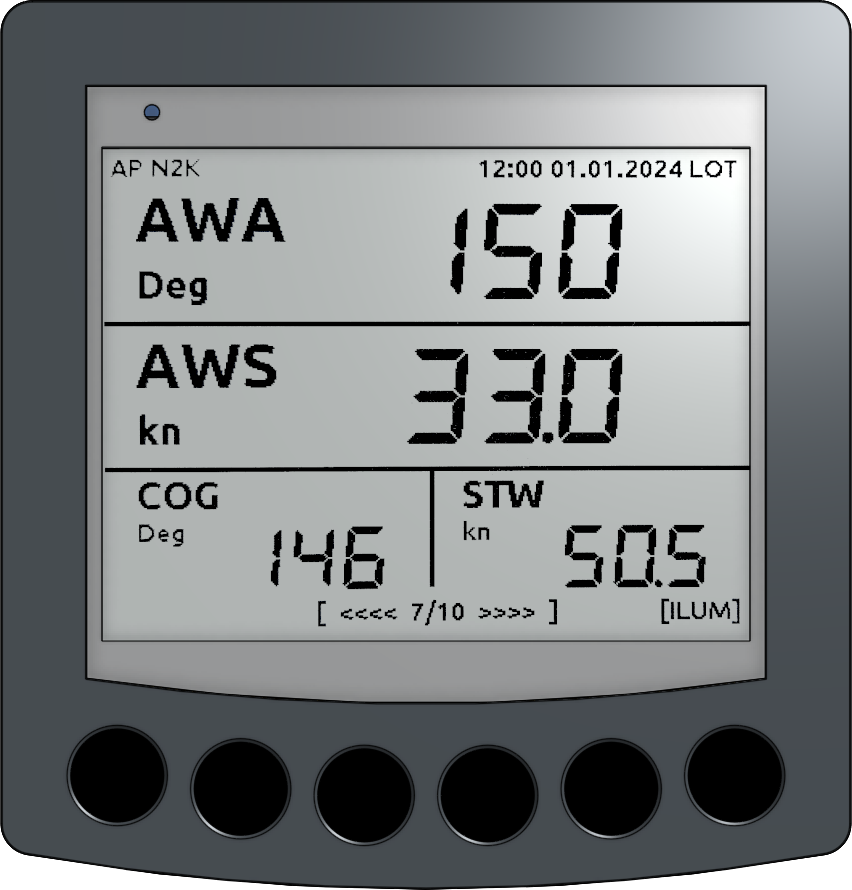

  • FourValue2 - Four display values (different arrangement vertical/horizontal)

  • WindRoseFlex - Display of wind data (all display values configurable, first value is graphically displayed on the wind rose)

• Pages with fixed content

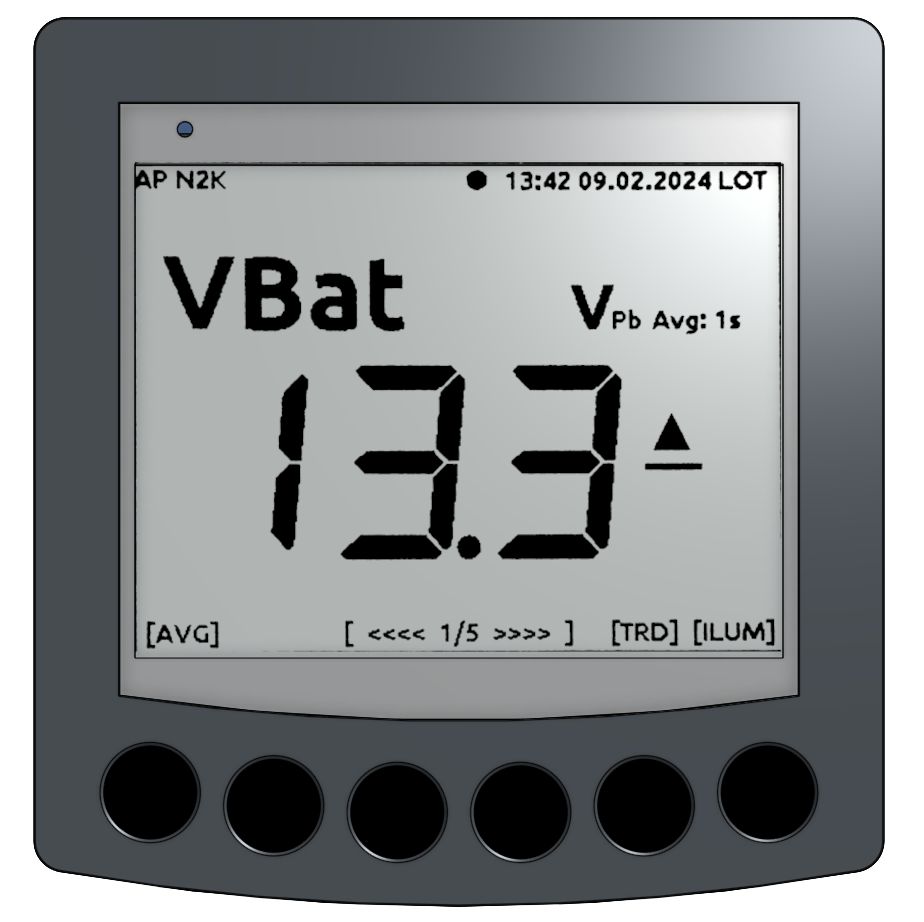

  • Voltage - Display of the on-board voltage (xdrVBat)

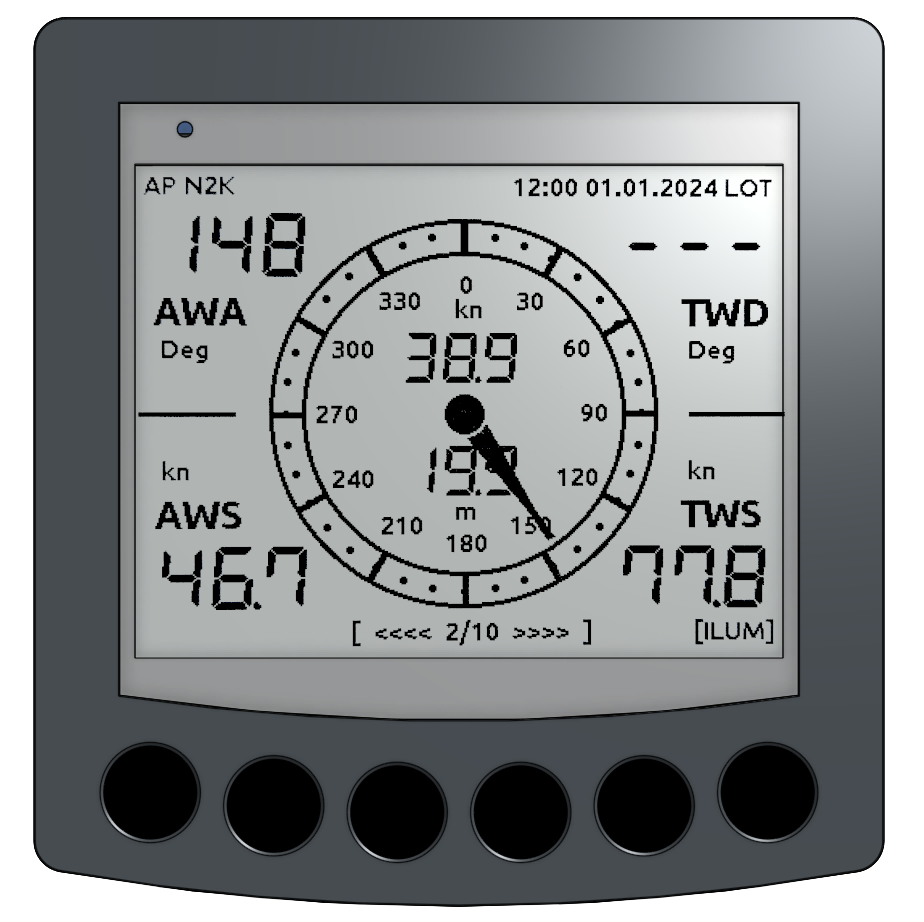

  • WindRose - Display of wind data (AWA, AWS, TWD, TWS, DBT, STW)

  • DST810 - Display for depth, speed, log and water temperature (DBT, STW, Log, WTemp)

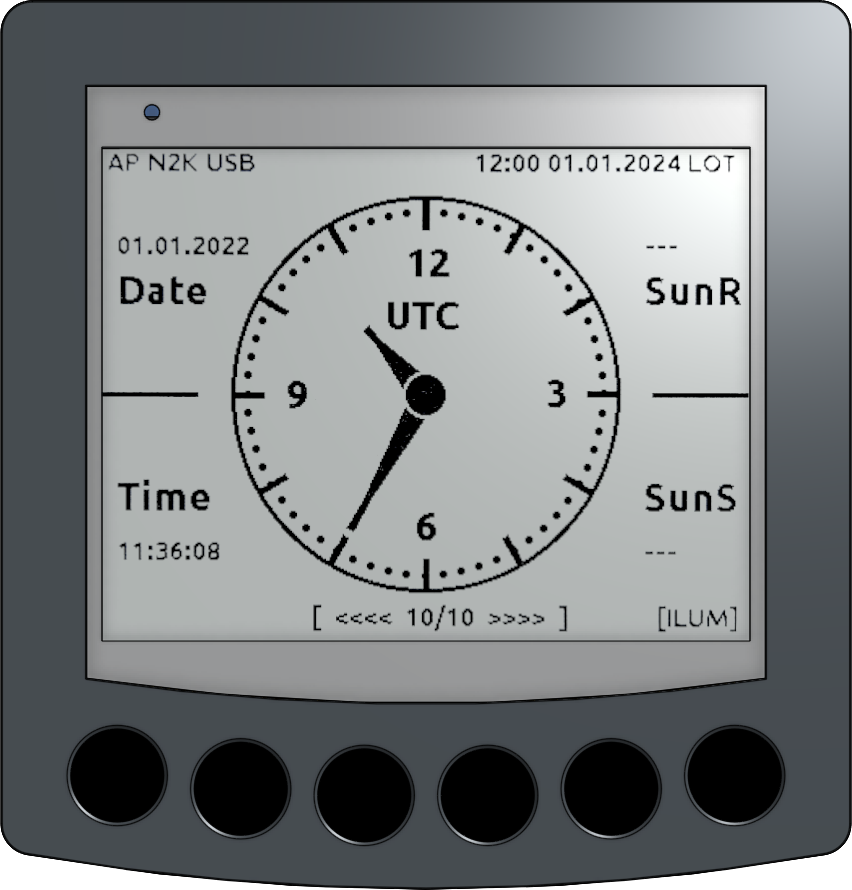

  • Clock - Graphic time display with sunrise and sunset (GPST, GPSD)

  • White Page - Blank white page to put the display into standby mode

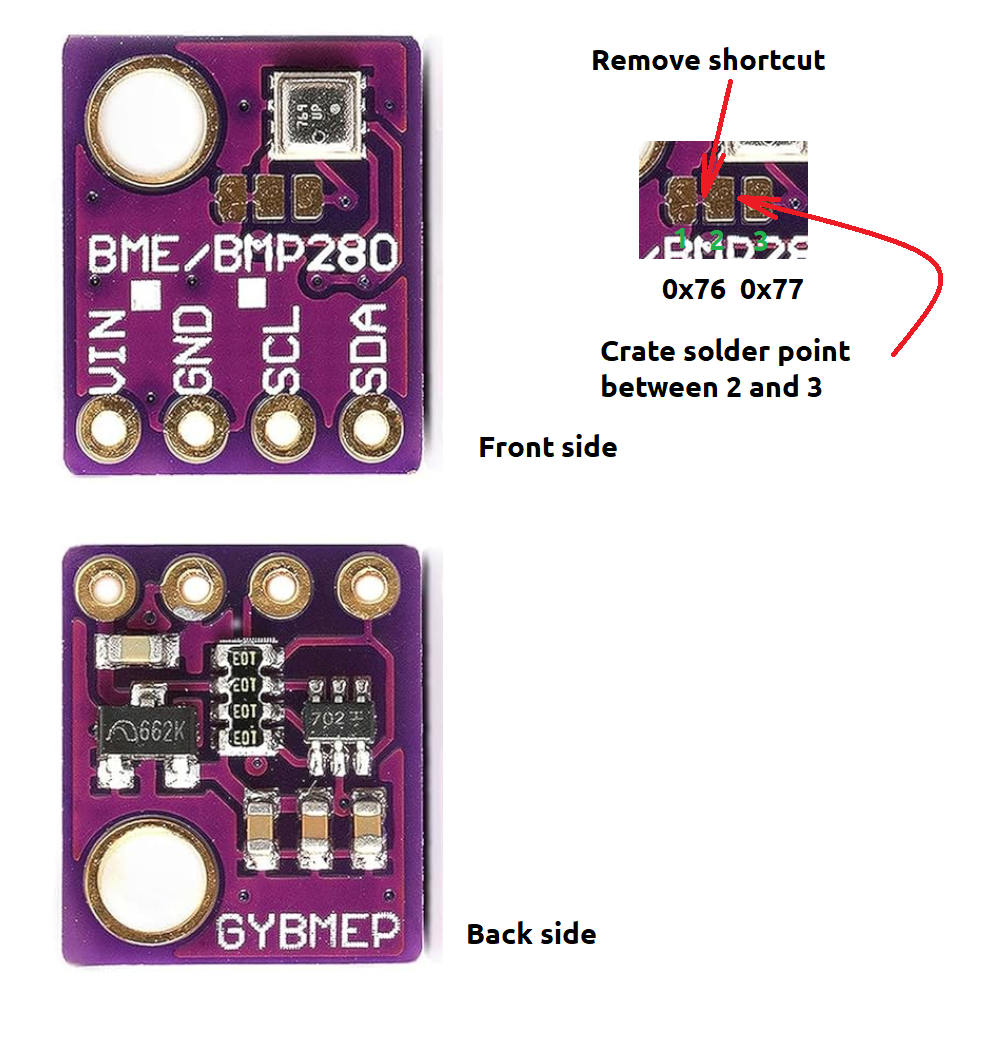

  • BME280 - Display of environmental data such as temperature, air pressure and humidity (BME280 I2C)

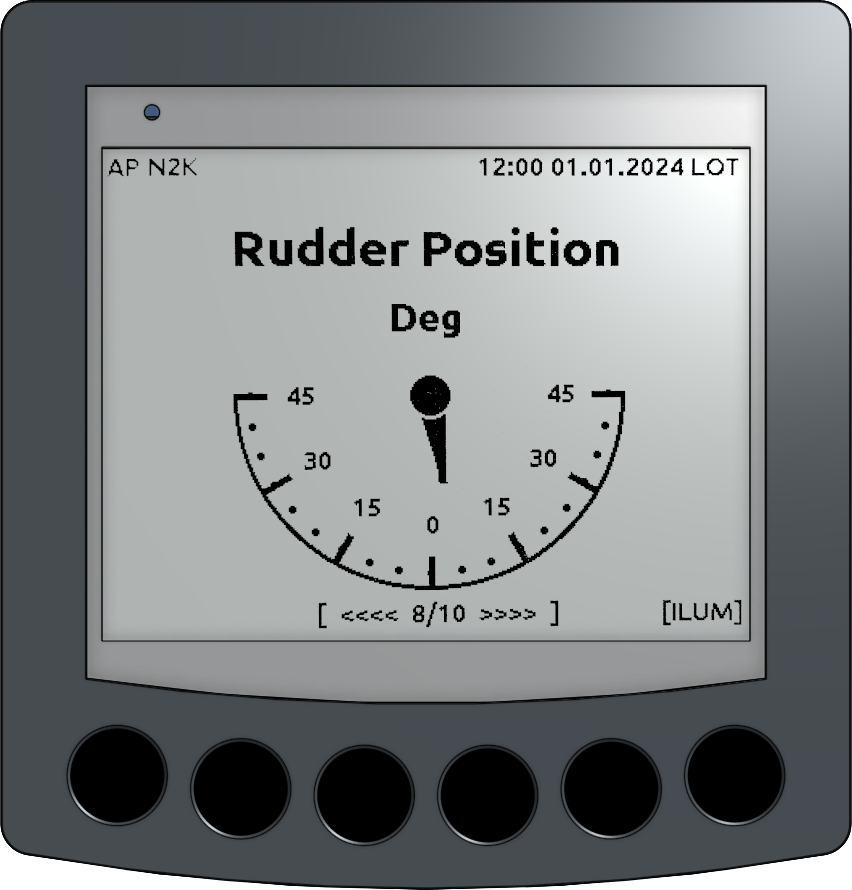

  • Rudder - Graphical display of rudder position (RPOS)

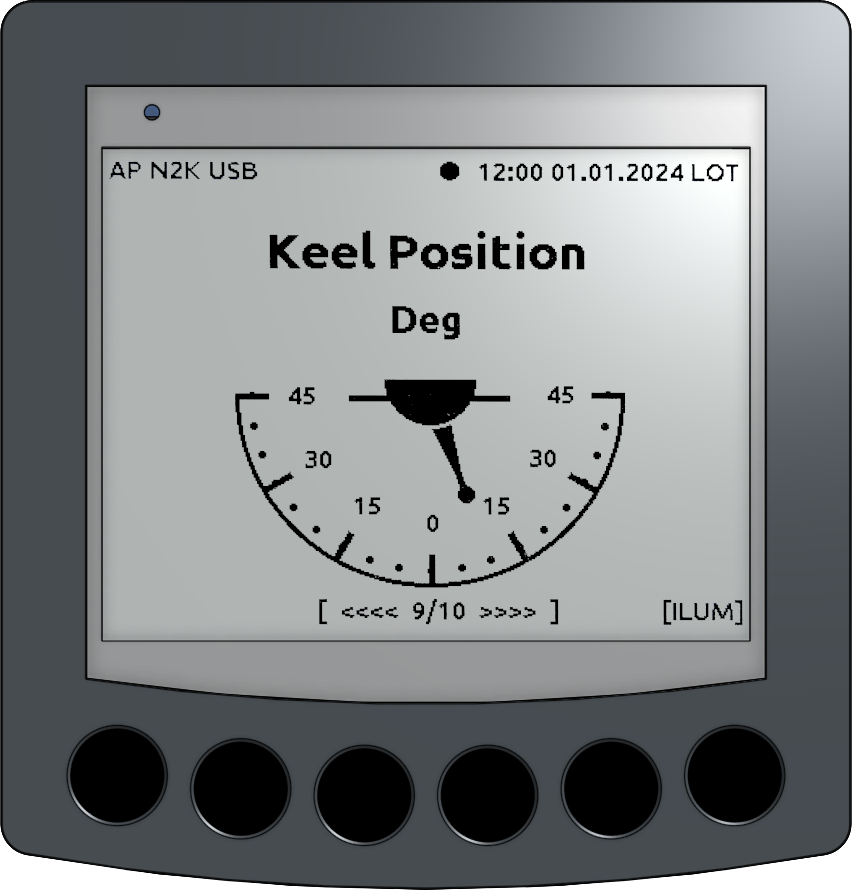

  • Keel - Graphical display of keel position (AS5600 I2C)

  • Battery - Display of voltage, current and power (INA219, INA226 I2C)

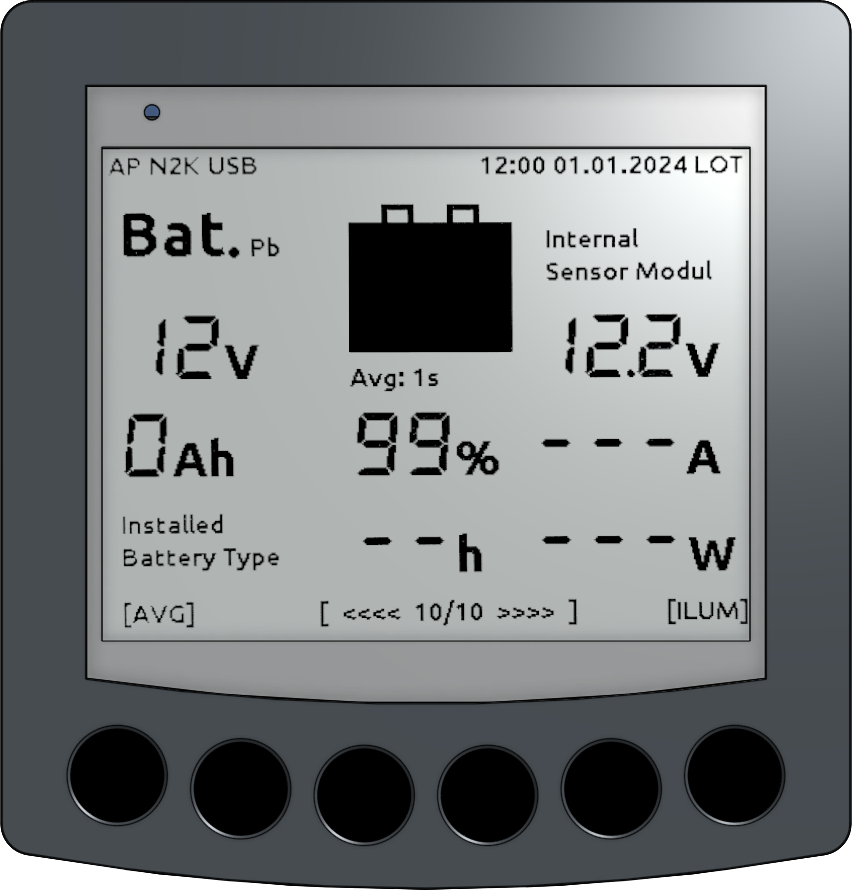

  • Battery2 - Graphical display of battery charge level (INA219, INA226 I2C)

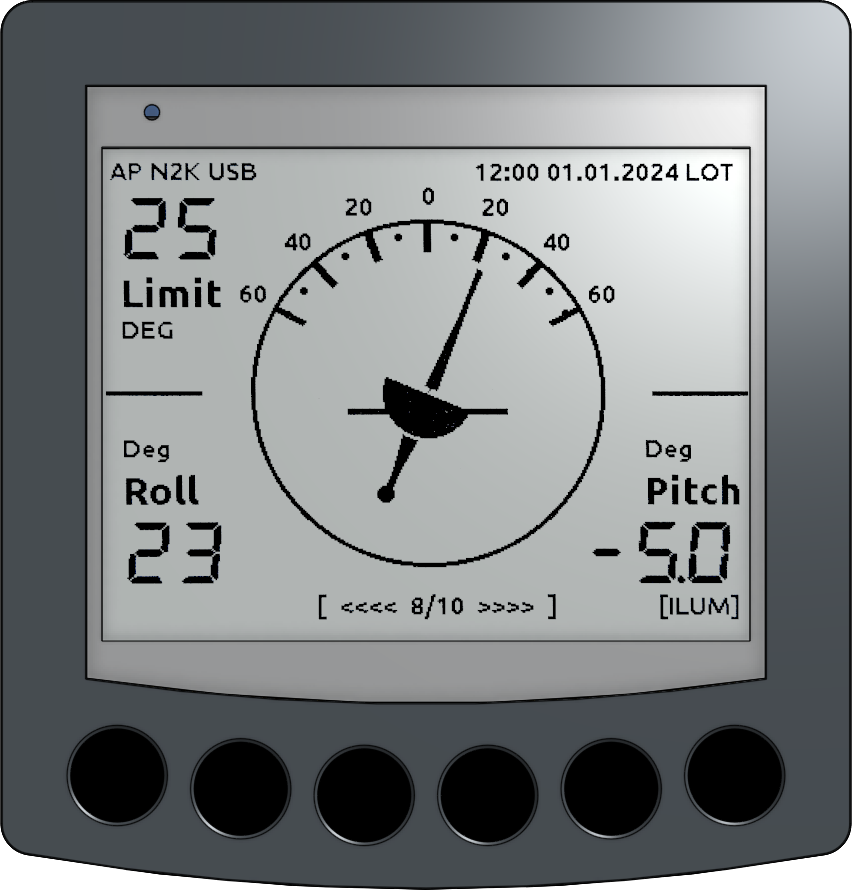

  • RollPitch - Graphical display of roll and pitch (xdrRoll, xdrPitch Although the page can only be used to display roll and pitch, the values are still configurable in case the labels are slightly different, e.g., xdrROLL or xdrPTCH)

  • Solar - Graphical display of solar charge status (INA219, INA226 I2C)

  • Generator - Graphical display of generator charge status (INA219, INA226 I2C)

Note

Please note that all pages with static content require specific sensor values to display measurements. The availability of the necessary data can be checked under the Data tab.

For pages with dynamic content, the number of input fields available varies depending on the number of displayed values. These fields allow you to select the data to be displayed.

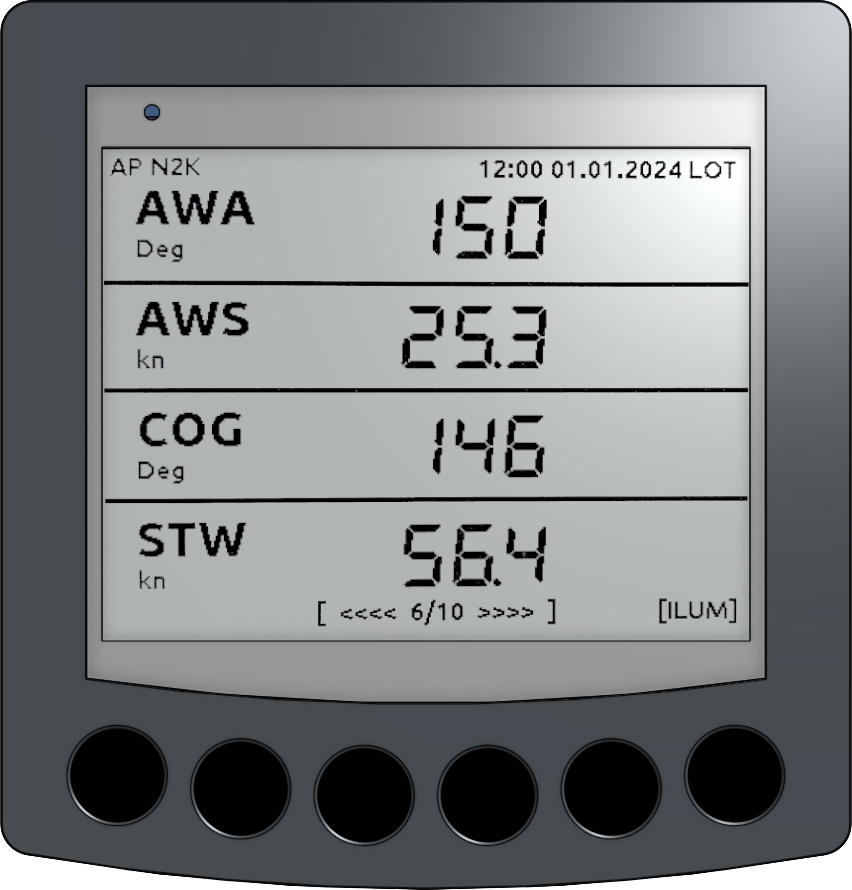

Fig.: Page with 4 display values

• Data pool of selectable data

  • ALT - Altitude, height above ground

  • AWA - Apparent Wind Angle

  • AWS - Apparent Wind Speed

  • BTW - Bearing To Waypoint, Angle to the current waypoint

  • COG - Course over Ground

  • DBS - Depth Below Surface

  • DBT - Depth Below Transducer, Depth below sensor

  • DEV - Deviation, course deviation

  • DTW - Distance To Waypoint, distance to the current waypoint

  • GPSD - GPS Date, GPS-Datum

  • GPDT - GPS Time, GPS time as UTC (Universal Time)

  • HDM - Magnetic Heading, magnetic course

  • HDT - Heading, true guiding course

  • HDOP - GPS accuracy in the horizontal plane

  • LAT - Latitude, geographical latitude

  • LON - Longitude, geographical altitude

  • Log - Log, Distance

  • MaxAws - Maximum Apparent Wind Speed, maximum relative wind speed since device start-up

  • MaxTws - Maximum True Wind Speed, maximum true wind speed since device start-up

  • PDOP - GPS accuracy across all 3 spatial axes

  • PRPOS - Secondary Rudder Deflection

  • ROT - Rotation, Drehrate

  • RPOS - Rudder Position, Main Rudder Deflection

  • SOG - Speed Over Ground

  • STW - Speed Through Water

  • SatInfo - Satellite Info, Number of visible satellites

  • TWD - True Wind Direction

  • TWS - True Wind Speed

  • TZ - Time Zone

  • TripLog - Trip Log, Daily Distance Counter

  • VAR - Variation, deviation from the target rate

  • VDOP - GPS Accuracy in the Vertical

  • WPLat - Waypoint Latitude, geographical latitude of the waypoint

  • WPLon - Waypoint Longitude, geographical length of the waypoint

  • WTemp - Water Temperature

  • XTE - Cross Track Error, Course Error

  • XdrVBat - On-board voltage

OneValue

Image: OneValue advertisement

The OneValue display allows any measurement value from the data pool to be shown. In addition to the measurement value, the short identifier and the unit are displayed.

For certain data types, a graphical display of the data history can be selected in addition to the numerical display using the MODE key. The display toggles between three different views:

• Large-format numerical display of the current measured value

• Display of the measured value in the upper half of the display and a graphical diagram showing the time course of the measured values in the lower half of the display.

• Full-screen graphical display of the time course of the measured values with a small numerical representation of the current measured value.

The value axis is dynamically adjusted depending on the displayed data.

The graph can display the trend of the measured values over a selectable time interval. The time interval can be changed using the ZOOM button. Each press of the button advances the interval between [4, 8, 12, 16, 32] minutes. The selected interval is indicated on the time axis. At a time interval of four minutes, a new data value is added every second. At longer time intervals, new values are displayed only every 2-8 seconds.

Note

The graphical display is supported for the following data types: AWA, AWD, AWS, COG, DBS, DBT, DPT, HDM, HDT, ROT, SOG, STW, TWA, TWD, TWS, WTEMP. If a data type is selected for OneValue display that only allows a numeric display, the MODE and ZOOM keys will not be available.

TwoValue

Image: TwoValue advertisement

The TwoValue display allows any two measured values from the data pool to be displayed vertically, one above the other. In addition to the measured values, their short names and units are also shown.

The other functions are identical to the OneValue display.

ThreeValue

Image: ThreeValue advertisement

The ThreeValue display allows any three measured values from the data pool to be displayed vertically, one above the other. In addition to the measured values, their short names and units are also shown.

FourValue

Image: FourValue advertisement

The ThreeValue display allows any four measured values from the data pool to be displayed vertically, one above the other. In addition to the measured values, their short names and units are also shown.

FourValue2

Image: FourValue advertisement

The FourValue display allows any four measurements from the data pool to be shown vertically, one above the other, and horizontally, side by side. Alongside the measurements, the short descriptions and units are displayed. This display corresponds to the older Raymarine ST60 TriData display, with the difference that any values can be shown. There is also the DST810 display page with fixed content, which shows the same measurements as the ST60 TriData.

Voltage

Fig.: Voltage display

The voltage display shows the battery supply voltage as provided at the CN2 input.

Note

Please note that the voltage reading may not exactly match the battery voltage. Voltage drops can occur due to line losses, and the measured value may be lower than the actual battery voltage.

A trend indicator shows the direction in which the voltage is moving. The battery type [Pb|AGM|Gel|LiFePo4] and the currently used averaging depth are displayed next to the unit “Volt”. The following functions can be accessed via the buttons.

• [AVG] - Setting the averaging depth in seconds [1|30|60|300]

• [TRD] - Enable or disable trend display

The display page requires the following measurement values: xdrVBat

WindPlot

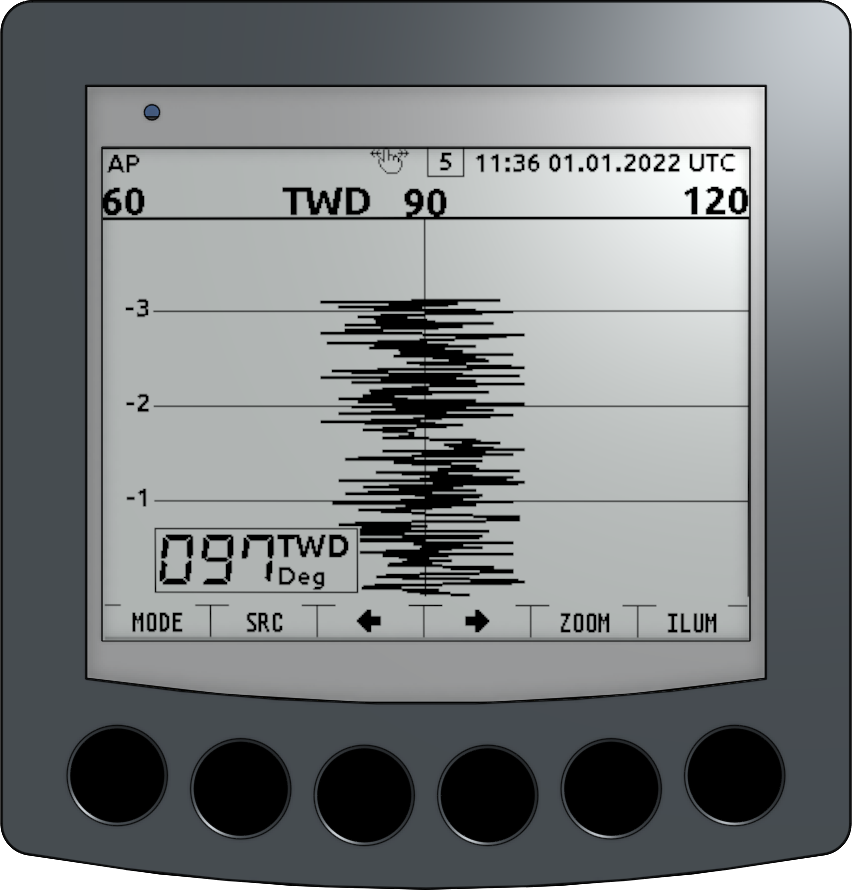

Fig.: WindPlot display

This page graphically displays the time course of wind data. The MODE key switches between three different line graphs:

• Absolute wind direction (wind direction TWD/AWD)

• Wind speed (wind speed TWS/AWS)

• Combined display of wind direction and wind speed.

The value axis is dynamically adjusted depending on the displayed data. In addition to the graphical display of the wind data, the most recent value is also shown as a number.

The SRC key allows you to switch between displaying true and apparent wind data.

The graph can display the wind data over a selectable time interval. The time interval can be changed using the ZOOM key. Each press of the key advances the interval between [4, 8, 12, 16, 32] minutes. The selected interval is indicated on the time axis. At a four-minute interval, a new data value is added every second. At longer intervals, new values are displayed only every 2-8 seconds.

The display page requires the following measurements: TWD, TWS, AWS. The AWD value is calculated automatically if the AWA and AWS data sets are available.

Note

Switching between true and apparent wind data is only available on the OBP60. Since the OBP40 only has two buttons, the wind data type must be selected in the page definition configuration submenu WindPlot. The selection cannot be changed on the device itself.

WindRose

Fig.: Display of compass rose

The wind rose display shows wind data. The apparent wind data is shown on the left, and the true wind data on the right. The apparent wind data refers to the wind perceived on a moving vessel, resulting from the interaction of the true wind and the wind generated by the vessel’s movement. This is relative data perpendicular to the boat. The true wind data represents the wind conditions as measured on a stationary vessel. The wind angle is measured relative to the bow, and the wind direction is measured relative to true north.

The current speed through the water and the water depth below the sensor are displayed in the center of the compass rose.

The display page requires the following measurements: AWA, AWS, TWD, TWS, DBT, STW

WindRoseFlex

Fig.: WindroseFlex display

In this version of the WindRose display, the values to be shown can be freely selected. The first value is graphically represented as a direction on the wind rose; it makes sense to choose AWA or TWA here.

DST810

Image: FourValue advertisement

The DST810 display shows speed through the water, depth, distance traveled, and water temperature. In addition to the measured values, the abbreviations and units are displayed. The display layout corresponds to the older version of the Raymarine ST60 TriData. Valid information must be present in the data pool for the data to be displayed. Besides the Airmar DST810, measurements from other sensor manufacturers that provide the same data or a portion thereof can also be displayed.

The display page requires the following measurements: DBT, STW, Log, WTemp

Clock

Fig.: Clock display

The clock display shows the time, date, sunrise time, and sunset time. These values are primarily derived from GPS data. Sunrise and sunset times are calculated based on the geographic location and correspond to the astronomical sunrise and sunset times. The time can be displayed in either UTC or local time (LOT). The time zone can be selected via the configuration page: Config - OBP Settings.

The time is set automatically via GPS time. GPS time must be provided externally via NMEA0183 telegrams or a GPS receiver must be connected to the OBP40. Before using the OBP40, ensure that GPS reception is available so that the time can be set. The OBP40 does not have a real-time clock (RTC). After the device is switched off, the time is not saved and is lost. After switching on, the device requires some time to synchronize with an external time source.

Note

If no GPS data is available, no time will be displayed. In that case, neither sunrise nor sunset times will be available.

The display page requires the following measurements: GPST, GPSD

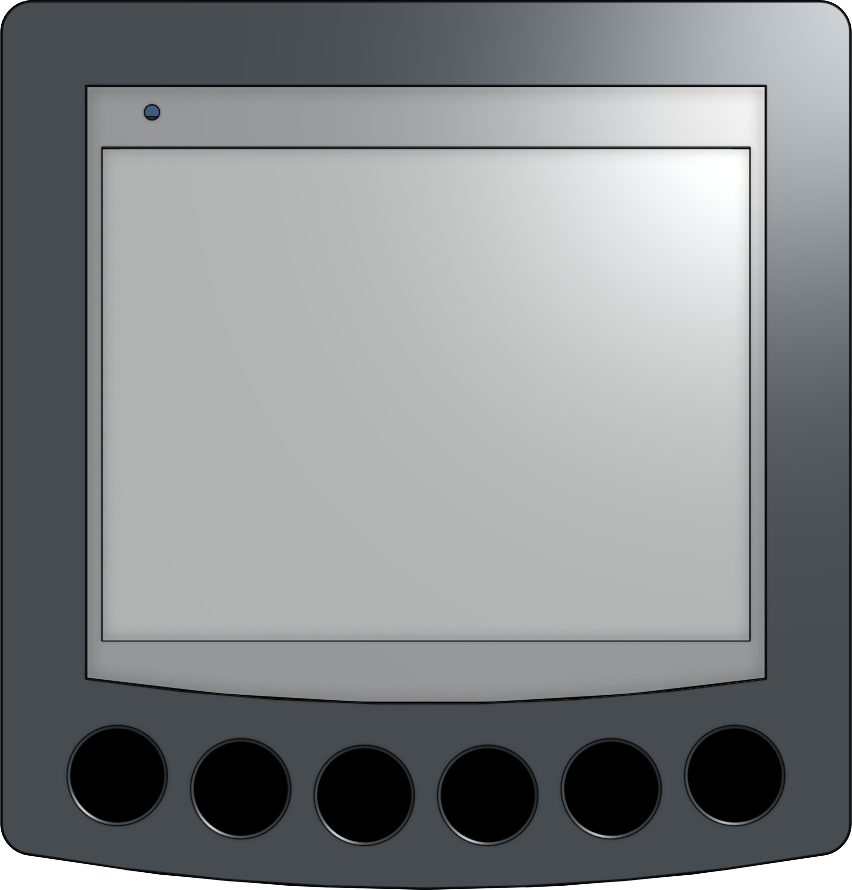

WhitePage

Image: WhitePage display

WhitePage is a display page that shows only a blank white page. This page can be used to selectively clear the screen content before switching off the device.

BME280

Fig.: BME280 display

The BME display shows the three measured values of air temperature, air pressure, and humidity from the BME280. For this to work, the BME280 must be connected to the external I2C bus and set to address 0x77.

Warning

Keep in mind that the external I2C bus uses a 5V signal level for SCL and SDA. Use modules that are tolerant of 5V, or use 5V to 3.3V level shifters for the SCL and SDA signals. Failure to do so may damage the external modules or cause them to malfunction.

A 5V compatible BME280 module is the GYBME electronic module:

Fig.: BME280-Module

The measured values from the external sensor must be saved as XDR telegrams (see configuration page: XDR). The following mappings must be observed:

• TAir - Air temperature

• Pair - Air pressure

• Hair - Humidity

Rudder

Fig.: Rudder display

The rudder indicator displays the rudder deflection. The rudder deflection can be graphically represented within a range of +/-45°. If no sensor readings for rudder deflection are available, the indicator is not visible.

Hint

The rudder display can be used for data from NMEA0183, NMEA2000 and an I2C rotation sensor.

The display page requires the following measurements: RPOS

Keel

Fig.: Keel advertisement

The keel display shows the keel position of a canting keel. The keel position can be graphically represented within a range of +/-45°. If no sensor values are available for the keel position, the keel is not visible.

In order for the keel position to be displayed, a rotation sensor module AS5600 must be connected to the I2C bus and the sensor must be parameterized as keel sensor on the configuration page Config - OBP Hardware.

Fig.: AS5600 magnetic rotation sensor for displaying the keel position

Please also refer to the information in the chapters Data Exchange - I2C Bus and Bus Systems - I2C.

Hint

The keel indicator can only be used in conjunction with an I2C rotation sensor.

Battery

Fig.: Battery indicator

The battery display shows the current values for on-board voltage, current, and power. In addition to the measured values, the abbreviations and units are displayed. To display the battery values, an I2C module INA226 must be connected to the I2C bus and set to address 0x41. The shunt can be configured for various maximum currents in amperes [10|50|], 100|200|, 300|400|, 500] under Config - OBP Hardware.

Hint

Keep in mind that the inaccuracy of the measurements increases with higher currents. Select the shunt to suit typical usage scenarios and ensure it is not oversized. The shunt’s measurement inputs are intrinsically safe up to twice the maximum current and can withstand short-term overloads.

Fig.: I2C address assignment INA226

For measurement with an external power shunt, the large black resistor R100 on the front of the circuit board must be removed. The module should then be wired as follows.

Fig.: Circuit diagram INA226 battery monitoring

Note

If you are using the battery indicator but no INA226 module is connected to the I2C bus, no readings will be displayed.

Warning

For the power circuit, use sufficiently large conductor cross-sections that are rated for the maximum current. Use appropriate fuses in the power circuits to prevent cable fires in the event of short circuits. For a long-lasting installation, use stranded wire with tinned individual conductors. If this is not possible for cost reasons, the cable ends should be fitted with crimped cable lugs or ferrules. The cable lugs should then be additionally soldered with tin to prevent corrosion in the cable sleeves. Covering the crimped and soldered joints with heat-shrink tubing prevents moisture from rising up the cable, which can also cause corrosion over long periods. Ensure that the INA226 is housed in a waterproof, insulated enclosure and that the sensor connections VBS and GND are protected with a 100 mA fuse. If you lack sufficient expertise, you should have the sensor installed by a qualified professional or have your installation checked by a qualified professional before commissioning.

Danger

Improper or faulty electrical installations can cause fires and endanger lives. Regularly check the installation for proper function and safety.

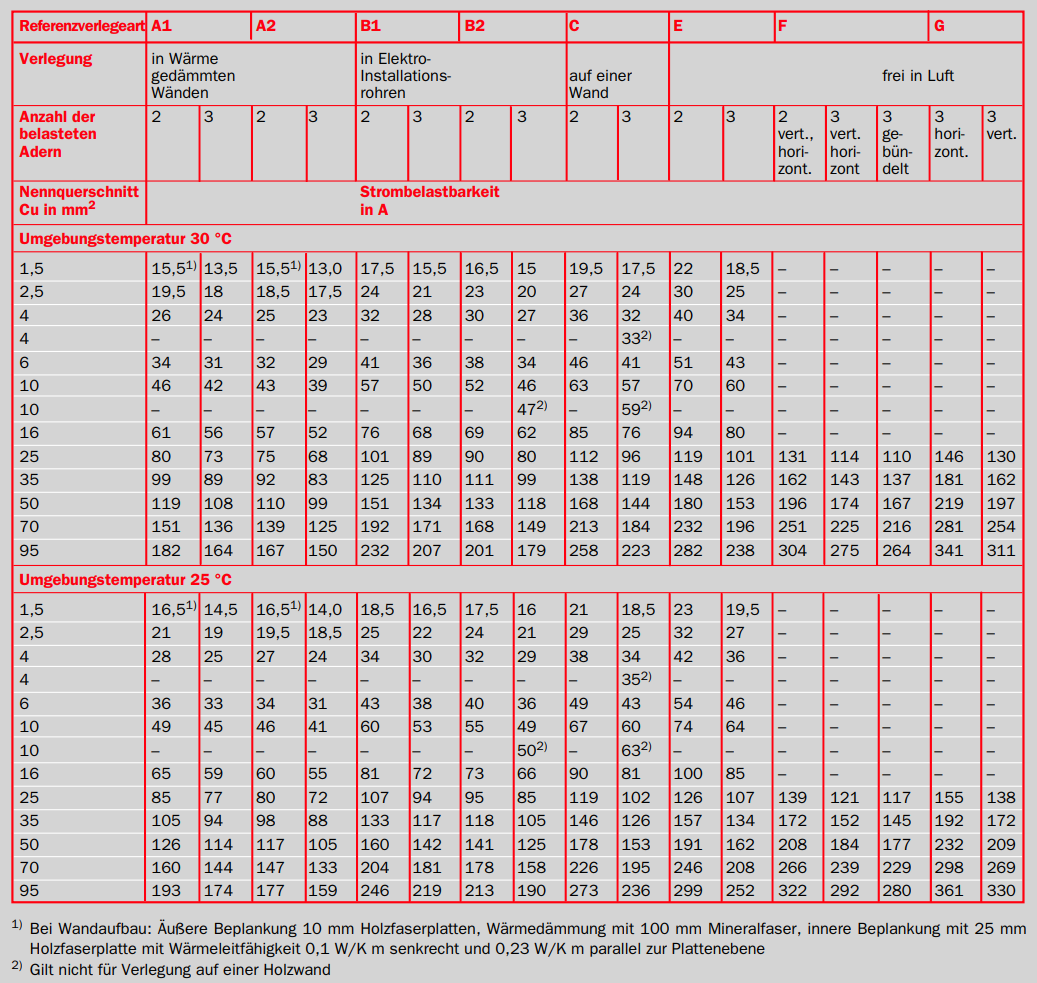

Fig.: Conductor cross-sections (EP 12/00)

For further information, you can use the information material Lines and Cables pdf.

Battery2

Fig.: Battery2 display

The following values are displayed in the Battery2 display:

• Battery type [Pb|Gel|AGM|LiFePo4]

• Nominal battery voltage in V

• Nominal battery capacity in Ah

• Graphical fill level display in %

• Estimated range in hours based on current consumption figures

• Sensor module type [internal sensor|INA219|INA226]

• Current battery voltage in V

• Current electricity consumption in A

• Current power in W

The following functions can be used via the keys.

• [AVG] - Setting the averaging depth in seconds [1|30|60|300]

Warning

The range indicator provides an approximate time estimate of how long the battery will supply power based on current consumption. This time depends on the current power consumption and adjusts continuously. The battery voltage is used to determine the range and thus the battery’s charge level. This method is not very precise and depends on the battery’s age. In non-critical situations, check the accuracy of the range indicator and plan for appropriate safety margins to avoid unexpected breakdowns.

Hint

Use a long averaging time of 300 seconds via the [AVG] button to obtain a realistic range display. This smooths out power consumption peaks and results in a significantly more stable range value.

To display the battery values, an I2C module INA226 must be connected to the I2C bus and set to address 0x41. The shunt can be configured for various maximum currents in amperes [10|50|]100|200|300|400|500] under Config - OBP Hardware.

Hint

Keep in mind that the inaccuracy of the measurements increases with higher currents. Select the shunt to suit typical usage scenarios and ensure it is not oversized. The shunt’s measurement inputs are intrinsically safe up to twice the maximum current and can withstand short-term overloads.

Fig.: I2C address assignment INA226

For measurement with an external power shunt, the large black resistor R100 on the front of the circuit board must be removed. The module should then be wired as follows.

Fig.: Circuit diagram INA226 battery monitoring

Note

If you are using the battery indicator but no INA226 module is connected to the I2C bus, no readings other than the current battery voltage will be displayed. In this case, the OBP40’s internal voltage sensor is used. The measured voltage value may not directly correspond to the voltage at the battery, as line losses can distort the voltage reading.

Warning

The hazards and risks associated with using the INA226 for battery monitoring are the same as described in the Battery chapter. Follow the recommendations and be aware of the hazards.

RollPitch

Fig.: RollPitch display

The RollPitch display shows the current roll and pitch values, as well as the threshold at which a visual signal is emitted via the flash LED. Pitch corresponds to the longitudinal tilt and roll to the lateral tilt of the boat. The sensor values must be entered as XDR telegrams in the form of xdrRoll and xdrPitch (see configuration page: XDR). The following mappings must be observed:

• Roll - Lateral tilt

• Pitch - Longitudinal tilt

Solar

Fig.: Solar display

The solar display shows the following values:

• Nominal voltage of the solar modules in V

• Nominal power of the solar modules in W

• Utilization rate in %

• Sensor module type [internal sensor|INA219|INA226]

• Current solar voltage in V

• Current solar feed-in in A

• Current feed-in power in W

The following functions can be used via the keys.

• [AVG] - Setting the averaging depth in seconds [1|30|60|300]

To display the measured values, an I2C module INA226 must be connected to the I2C bus and set to address 0x44. The shunt can be configured for various maximum currents in amperes [10|50|]100|200|300|400|500] under Config - OBP Hardware.

Hint

Keep in mind that the inaccuracy of the measurements increases with higher currents. Select the shunt to suit typical usage scenarios and ensure it is not oversized. The shunt’s measurement inputs are intrinsically safe up to twice the maximum current and can withstand short-term overloads.

Fig.: I2C address assignment INA226

For measurement with an external power shunt, the large black resistor R100 on the front of the circuit board must be removed. The module should then be wired as follows.

Fig.: Circuit diagram INA226 solar monitoring

Note

If you are using the solar display but no INA226 module is connected to the I2C bus, no readings other than the current battery voltage will be displayed. In this case, the OBP40’s internal voltage sensor is used. The measured voltage may not directly correspond to the voltage at the inverter’s output, as line losses can distort the voltage reading.

Warning

The hazards and risks associated with using the INA226 for battery monitoring are the same as described in the Battery chapter. Follow the recommendations and be aware of the hazards.

Generator

Fig.: Display Generator

The generator display shows the following values:

• Rated voltage of the generator in V

• Rated power of the generator in W

• Utilization rate in %

• Sensor module type [internal sensor|INA219|INA226]

• Current generator voltage in V

• Current generator feed-in in A

• Current generator output in W

The following functions can be used via the keys.

• [AVG] - Setting the averaging depth in seconds [1|30|60|300]

To display the measured values, an I2C module INA226 must be connected to the I2C bus and set to address 0x45. The shunt can be configured for various maximum currents in amperes [10|50|]100|200|300|400|500] under Config - OBP Hardware.

Hint

Keep in mind that the inaccuracy of the measurements increases with higher currents. Select the shunt to suit typical usage scenarios and ensure it is not oversized. The shunt’s measurement inputs are intrinsically safe up to twice the maximum current and can withstand short-term overloads.

Fig.: I2C address assignment INA226

For measurement with an external power shunt, the large black resistor R100 on the front of the circuit board must be removed. The module should then be wired as follows.

Fig.: Circuit diagram INA226 generator monitoring

Note

If you are using the generator display but no INA226 module is connected to the I2C bus, no readings other than the current battery voltage will be displayed. In this case, the OBP40’s internal voltage sensor is used. The measured voltage may not directly correspond to the voltage at the generator output, as line losses can distort the voltage reading.

Warning

The hazards and risks associated with using the INA226 for battery monitoring are the same as described in the Battery chapter. Follow the recommendations and be aware of the hazards.

XDR

The XDR configuration page allows you to create XDR Sentences for NMEA0183. XDR Sentences are telegrams for generic sensor values, used when no suitable NMEA0183 telegram can be found to transmit the desired sensor values. It is a universal telegram for transmitting sensor data. If unassigned sensor data exists in the OBP40, it can be assigned via an XDR mapping. This makes the data generally usable as NMEA0183 telegrams and displays them in the OBP40. The data can then also be transmitted to other systems via NMEA0183 and used there. XDR Sentences are always used when data from the I2C bus, the 1-Wire bus, or internal sensor data from the ESP32 needs to be transmitted.

An XDR sentence is structured as follows:

Sensor Values

$–XDR,a,x.x,b,c–c,x–x*hh<CR><LF>

Field number:

• A - Sensor-Typ

• X.x - measured value

• B - Unit of measurement

• C - Name des Sensors

• X - Further sensor data

• Hh - Checksumme

Examples:

• $IIXDR,C,19.52,C,TempAir*19

• $IIXDR,P,1.02481,B,Barometer*29

Measurement	Sensor Type	Examples of measurement data	Unit	Name des Sensors
Air pressure	P Print	0.8..1.1 Or 800..1100	B Bar	Barometer
Air temperature	C Temperature	2 Decimal places	C Celsius	TempAir or ENV_OUTAIR_T
Pitch	A Shop	-180..0 Downwards 0..180 upwards	D Degrees	PTCH or PITCH
Rolling	A Shop	-180..0 Left 0..180 right	D Degrees	ROLL
Water temperature	C Temperature	2 Decimal places	C Celsius	ENV_WATER_T

Up to 30 XDR telegrams can be individually created via the XDR configuration page.

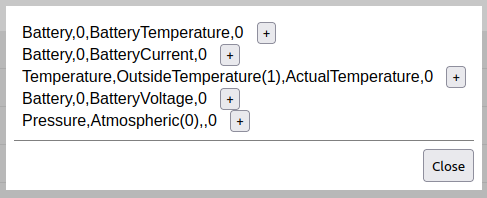

First, you open a list of unlinked sensor data via Show Unmapped.

The list will then show you which data is available. Using +, the data is automatically inserted into the last available XDR configuration and assigned to the correct category. The sensor name still needs to be added in the Transducer field.

After assigning the sensor name, an example XDR telegram is displayed under Example. All settings can then be customized. An explanation of the settings is provided below.

Direction

The Direction setting allows you to configure how sensor data should be read and where it should be transmitted:

• Off - The sensor data is not used. This allows you to deactivate an already configured XDR telegram.

• Bidir - Sensor data is exchanged between NMEA0183 and NMEA2000.

• To2K - The sensor data is only sent via NMEA2000.

• From2k - Sensor data is read from NMEA2000.

Category

A sensor type can be assigned via Category:

• Temperature - Temperature sensors e.g. for air, water, cooling devices

• Humidity - Humidity sensors

• Pressure - Pressure sensors for air pressure and other pressures such as oil pressure

• Fluid - Sensors for liquids such as flow rate and fill level

• Battery - Battery sensors for voltage, current, power, battery temperature

• Engine - Engine sensors for speed, angle, trim tabs, oil, coolant

• Attitude - Position data, determined from position sensor data

Source

The Source setting allows you to configure the source of the sensor data more precisely. Different sensor sources are available depending on the type of sensor used.

Field

The Field setting allows for a more precise description of how the sensor data should be interpreted. It comprises additional data that can be configured contextually, depending on the sensor type used. For example, it can be specified whether a value is a display value or a setting value.

Instance

The Instance property allows you to specify whether there are multiple sensors of the same type. This can occur, for example, if two engines are installed in a boat and two fuel level readings need to be displayed. The sensors are distinguished using an instance number. For example, #1 is appended to the sensor name. The instantiation can be configured as follows:

• Single - A sensor is instantiated and assigned a free instance number. This allows, for example, two sensors to transmit the same data in an XDR telegram if the sensors are redundant.

• Ignore - There is only one sensor of this type.

• Auto - Instantiation is handled automatically. As soon as a new sensor of the same type and source is used, a new instance of the sensor is created.

Transducer

The sensor name is set via Transducer. This is a plain text description of the sensor using ASCII characters. Use only letters and numbers without spaces or special characters.

Note

Use no more than 6 characters and use common abbreviations. Longer names will be truncated to 6 characters due to limited display space.

Example

Example of what the content of the XDR telegram will look like.

Read in NMEA0183 XDR

Incoming NMEA0183 data also requires an XDR mapping before it is available on the OBP40. For example, if NMEA0183 XDR data arrives in the following format: $IIXDR,A,0.9,D,PTCH,A,0.8,D,ROLL*5D, it can be used on the OBP40 with these settings:

Data

The “Data” section displays sensor data from all currently processed bus systems. Unavailable sensor data is marked with ---. The data display can also be configured to show only available data, hiding unavailable data fields.

Note

Restricting the data display to current data means that the data order will change if some sensor data is no longer available. These data fields will then be hidden. If you prefer a fixed display format, it is best to display all data.

Update

To update a device’s firmware, you can use the Update tab. There are two types of firmware updates.

Initial Firmware-Update

During the initial firmware update, the entire flash memory of the OBP40 is erased. All firmware components are then stored in the flash memory. This creates an initial configuration, overwriting any previous configuration. The initial firmware update uses the filename xxx-all.bin.

Normales Firmware-Update

A normal firmware update only updates the program portion of the firmware. Existing configurations are retained and can be used again after the update. Normal firmware updates use the filename xxx-update.bin.

You can download the latest firmware from the following website:

Https://github.com/norbert-walter/esp32-nmea2000-obp60/releases

Under Releases you will find a number of available firmware updates for the OBP40. Please note the specific hardware version for which you want to use a firmware update.

For a standard firmware update, download the desired firmware file and save it to your device. Then, select the downloaded file using the Choose File button. The firmware type, chip type, and firmware version will then be displayed. If the firmware is incompatible with your hardware, you will receive a message. In this case, the firmware cannot be flashed. Press the Upload button to start the flashing process. The progress bar will show the progress of the process. After a successful firmware update, the system will restart. During this time, the web configuration page will be offline (red dot). After the restart is complete, the page will be back online (green dot). The system will then be ready for use again.

Warning

Please note that when updating to an older firmware version, you should perform an Initial Firmware Update. This will prevent complications with the saved configuration data. Failure to do so may render the system unusable and cause it to freeze completely. A firmware update via the configuration pages will then no longer be possible. The firmware must then be flashed via USB.

How to perform an Initial Firmware Update, or flash the firmware of an OBP40 via USB, is described under Update.

Help

Under Help, you will be redirected to the GitHub page where the project is hosted. There you can find more detailed information about the NMEA2000 gateway, which forms the basis for this firmware.

Note

The GitHub page can only be accessed if the OBP40 has internet access. This can be achieved, for example, if the OBP40 is operating as a client on your boat’s Wi-Fi network, and your boat’s Wi-Fi network has internet access. Alternatively, you can, for example, create a hotspot on your mobile phone and connect the OBP40 to your phone as a Wi-Fi client.
